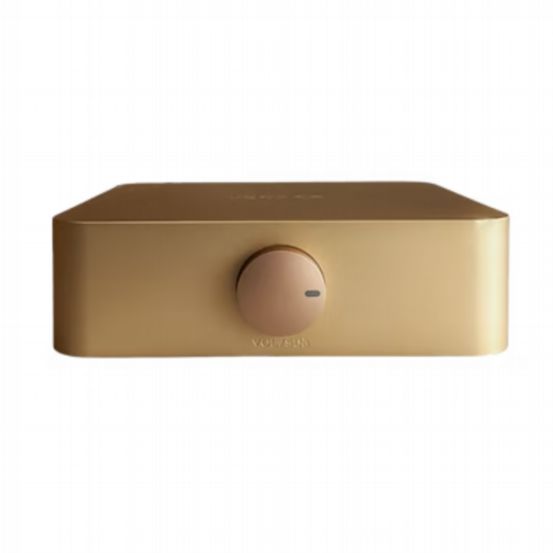

XSCACE Xylem 2–4 Channel DSP Amplifier

XSCACE
XSCACE Xylem 2–4 Channel DSP Amplifier

XS-XAM-DSP-XLM

The XSCACE Xylem is an in-house designed multi-channel architectural amplifier, engineered to deliver clean, controlled power for modern audio systems while blending seamlessly into luxury interiors and rack environments. With flexible 2–4 channel configurations, optional DSP processing, and a precision-machined champagne-finish aluminium chassis, Xylem is built for integrators, designers, and audiophiles who demand high performance without compromise across residential and commercial installations.

Features & Benefits

  • Total power output: 400W (8Ω) Class D amplification platform
  • Flexible channel configurations: 2, 3 or 4-channel operation in a single amplifier platform
  • 2 × 200W configuration for high-output stereo or subwoofer applications (SKU: Xylem4200 series)
  • 2 × 100W + 1 × 200W configuration ideal for 2.1 or 3-channel systems (SKU: Xylem4300 series)
  • 4 × 100W configuration for multi-room, surround or architectural speaker arrays (SKU: Xylem4400 series)
  • Optional DSP variants with SigmaStudio™ integration for advanced system tuning
  • DSP features include EQ, crossover design, time alignment, phase control and limiting
  • Multiple DSP presets available (Flat DSP, Bonsai, Cane, Quadcane, Ghost, Acacia) depending on SKU variant
  • Frequency response: 20Hz – 22kHz for accurate full-range audio reproduction
  • Signal-to-noise ratio: >109dB @ 1kHz for low-noise performance
  • THD+N: <0.1% @ 1kHz, 1W, 8Ω for clean, distortion-free output
  • Input sensitivity: 0.77V with 20kΩ input impedance
  • Protection systems: Short circuit, DCP, OVP, UVP, OCP and thermal overload protection
  • Inputs/outputs: Line In, Line Out, DSP (optional) and high-level speaker outputs
  • 5V trigger output for powering external streamers and control devices
  • Line output for amplifier linking or multi-zone system expansion
  • 48kHz sampling frequency with 48-bit fixed-point DSP and 48-bit A/D & D/A conversion
  • CNC-machined aluminium chassis with champagne finish for premium architectural integration
  • Compact, rack-friendly design optimised for silent thermal performance
  • Weight: 1.7 kg
  • Dimensions: H: 1.73” x W: 19.01” x D: 12.79”
