Savant

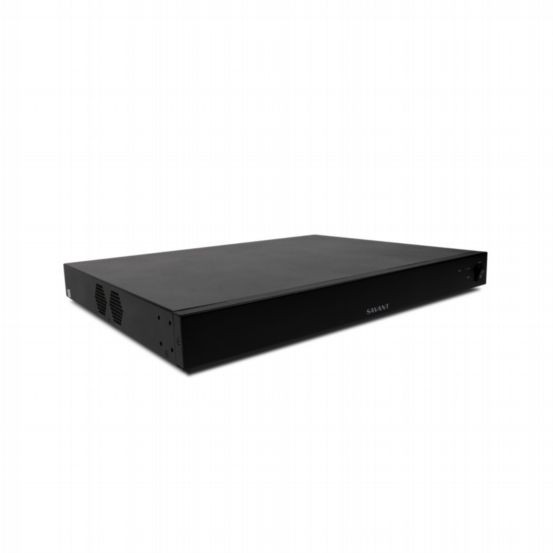

Savant 4K HDR HDBaseT Matrix Switcher 4x4 (1U)
SS-SLN-44VLC4K
The Savant 4x4 4K HDR HDBaseT Matrix Switcher is a compact 1U rackmount solution designed to distribute high-quality HDMI video, audio, and control signals over a single Cat5e/6/7 cable, supporting up to 4K60 4:4:4 with HDR across all inputs and outputs. Ideal for professional AV installations, it enables seamless routing with integrated audio de-embedding to TosLink outputs, flexible control via IP or RS-232, and compatibility with standard Savant HDBaseT and VLC receivers (40 m and 100 m), delivering reliable performance, scalability, and simplified system integration in both residential and commercial environments.
Features & Benefits
- 4x4 HDBaseT matrix switcher with 1U rackmount design
- All inputs and outputs support 4K60 4:4:4 with HDR
- Single Cat5e/6/7 cable for HDMI, control, and power extension
- First four ports are mirrored for additional flexibility
- Supports pass-through of HDMI audio formats (Dolby 5.1, DTS 5.1 via digital out)
- Works with 40 m and 100 m HDBaseT VLC receivers
- Control via IP or RS-232 with 8 IR inputs
- Power over Cable (PoC) support (18V 0.8A output)
- Designed for integration with Savant OS (minimum da Vinci 9.2)
