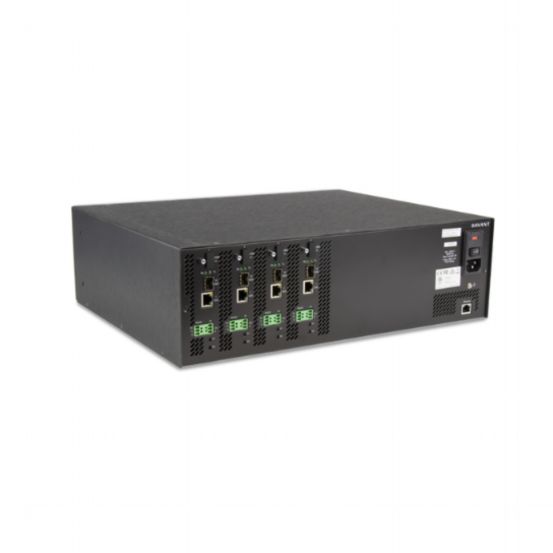

Savant IP Video 4-Input Transmitter 4K UHD – With Audio Processing and Control

Savant
Savant IP Video 4-Input Transmitter 4K UHD – With Audio Processing and Control

SS-PAV-VIMAP4S2

The Savant IP Video 4-Input Transmitter delivers ultra-high performance 4K/60 4:4:4 HDR video distribution with integrated audio processing and control. Designed for scalability, it supports AVB audio downmixing, PCM audio breakouts, and zero-frame latency video. The built-in video scaler ensures seamless downscaling for legacy HD displays, while each input includes IR and RS232 control ports for connected devices. With a software-defined matrix architecture, multiple transmitters can be networked over 10 Gb for expanded video input capabilities.

Variations

Features & Benefits

  • 4 HDMI inputs with SFP+ (requires Savant-certified fiber and connectors)
  • 4K60 4:4:4 HDR video distribution with built-in video scaler
  • AVB audio output compatible with Savant IP Audio suite
  • Each input includes 1 IR and 1 RS232 control port (total 4 IR, 4 RS232)
  • Advanced video processing and multi-source compositing
  • Supports additional 1 Gb Ethernet network devices using reserved bandwidth
  • Scalable software-defined matrix; multiple units can be connected over 10 Gb network
  • Simple configuration and management via Blueprint and System Monitor
  • Includes hardware for future video processing and tiling enhancements
  • Not compatible with CBL-SFPDACM2-00; use CON-FSFP1-00 transceivers with LC-to-LC patch cable
