Savant

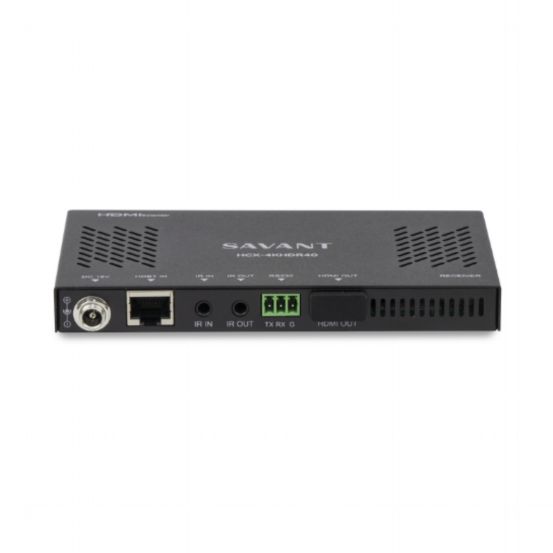

Savant HDBaseT Extender – 4K HDR, Up to 40 m
SS-HCX-4KHDR40
The Savant HDBaseT Extender delivers full HDMI 2.0 compliance with support for 4K@60 Hz, 4:4:4 chroma, and High Dynamic Range (HDR) content over a single CATx cable. Capable of transporting Ultra HD/4K video, multi-channel audio, and HDR (10-bit) signals, its low-profile “slim box” design makes it ideal for installation in tight spaces behind flat panel displays or video walls. With bi-directional RS232 and IR, CEC pass-through, and 2-way Power over HDBaseT, this extender simplifies professional AV installations while maintaining high-performance signal distribution.
Variations
Features & Benefits
- Supports resolutions up to 4K@60 Hz (4:4:4)
- Supports HDR (High Dynamic Range) formats
- HDCP 2.2 compliant
- High bandwidth support up to 18 Gbps
- Extends HDMI up to 40 m (130 ft.) at Ultra HD/4K using Cat6a/Cat7
- Extends HDMI up to 35 m (115 ft.) at Ultra HD/4K using Cat6
- 2-way Power over HDBaseT (PoH) – power adapter can be connected to either unit
- Bi-directional RS232 and IR extension
