HDBaseT Extenders with 4K HDR Up To 100m

Savant - control, multi-room audio & speakers
HDBaseT Extenders with 4K HDR Up To 100m

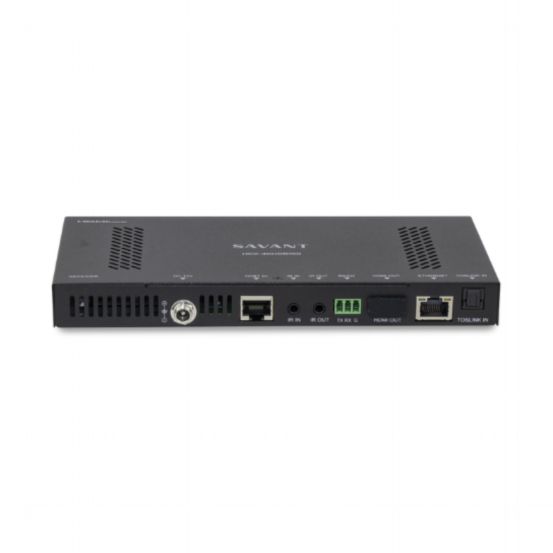

SS-HCX-4KHDR100

Savant's HDBaseT 4k 100m extension offers full HDMI 2.0 compliance supporting HDR (High Dynamic Range) or 4K@60Hz with 4:4:4 chroma sampling and can transport Ultra HD/4K, multi-channel audio with TOSLINK breakout, and High Dynamic Range (10 bits support) content over a single CATx cable. A low profile slim design makes it ideal for limited space installation, such as behind televisions and projectors.

Variations

Features & Benefits

  • Supports resolutions up to 4K@60Hz (4:4:4)
  • Supports HDR (High Dynamic Range) formats
  • HDCP 2.2 compliant
  • High bandwidth support - up to 18 Gbps
  • Extends HDMI up to 328 ft. (100m) at Ultra HD/4K or 1080p using Cat6a or Cat7
  • Extends HDMI up to 230 ft. (70m) at Ultra HD/4K and up to 328 ft. (100m) at 1080p using Cat6
  • Includes TOSLINK audio connections on both ends for return channel audio
  • Can use HDMI audio from the display to the TOSLINK Out on the Transmitter side
  • Two channel PCM return HDMI audio from the display can be output on the balanced analogue output on the Transmitter
  • Power over HDBaseT, only one power connection needed
  • Bi-directional RS232 & IR extension
  • CEC pass-through
  • Mounting bracket included
