Savant

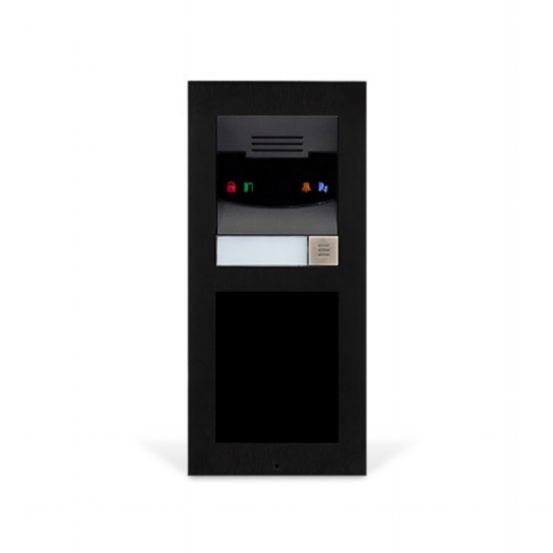

Flush Mount Single Height Door Station - Black
SS-DOR-VERSO2SMB-00
DOR-VERSO2SMB is a Savant Flush Mount Double Height Door Station - Black station
Variations
Features & Benefits
- Key Features:
- The Savant Door Station is a luxury IP door intercom that provides reliable access control, communication and video surveillance in
- compact form factor
- Backbox sold separate
- NOTE - This hardware is being provided for pre-installation. Savant software and Pro 8 App support for this product will be added in future release
- Microphone and speaker built in
- Wide-angle HD camera with infrared light and night vision
- Tamper switch available for detecting unauthorized device intrusions
- Powered directly from the LAN equipped with PoE 802.3af supporting network elements
- Power: POE: PoE 802.3af (Class 0 - 12.95W) Power Supply: 12V ± 15%/ 2A DC
- Connections: Ethernet: 10/100BASE-TX with Auto-MDIX
- Relay: NC/NO contacts, max 30 V/1 A AC/DC
- GPIO: 8 to 12 V DC depending on Power supply (PoE: 10 V; adapter: source voltage minus 2 V), max 400mA
- Environmental: Operating Temp: -40°C – 60°C
- Operating Humidity: 10%-95%
- Certification: IP54, IK08
- Camera: Resolution JPEG: 1280x960
- Resolution In Call: 640x480
- Viewing Angle: 120° (H), 90° (V), 145° (D)
- Night Vision: Yes
- Dimensions:
- Width: 5.12 in (13 cm)
- Height: 6.02 in (15.3 cm)
- Protrusion: 0.2 in (0.5 cm)
- For Pre-Construction see 9155017 or 9155068
