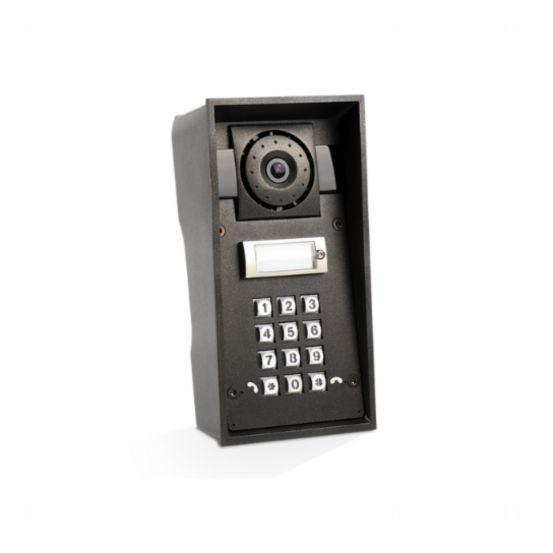

Heavy Duty Surface Mount Gate Station with Keypad - Black

Savant - control, multi-room audio & speakers
Heavy Duty Surface Mount Gate Station with Keypad - Black


DOR-HDSMKB is a Savant Heavy Duty Station with Keypad

Features & Benefits

  • Key Features:
  • The Savant HD Door Station is a IP door intercom that provides reliable access control, communication and video surveillance in a sturdy form factor. This product is over built throughout to protect againt exposted install locations like gates. NOTE - This hardware is being provided for pre-installation. Savant software and Pro 8 App support for this product will be added in future release.
  • Microphone and speaker built in
  • Wide-angle HD camera with infrared light and night vision
  • Powered directly from the LAN equipped with PoE 802.3af supporting network elements
  • Power: POE: PoE 802.3af (Class 0 - 12.95W) Power Supply: 12V ± 15%/ 2A DC
  • Connections: Ethernet: 10/100BASE-TX with Auto-MDIX, Relay: NC/NO contacts, max 30 V/1 A AC/DC, GPIO: 9 to 13 V DC depending on Power supply (PoE: 9 V; adapter: source voltage minus 2 V), max 700mA
  • Environmental: Operating Temp: -40°C – 55°C Operating Humidity: 10%-95% Certification: IP69K
  • Camera: Resolution JPEG: 1280x960
  • Resolution In Call: 640x480
  • Viewing Angle: 135° (H), 109° (V)
  • Night Vision: Yes
  • Dimensions:
  • Width: 5.34in (13.6cm)
  • Height: 9.53in (24.2cm)
  • Protrusion: 3.27in (8.3cm)
  • For Pre-Construction see DOR-HDFLBRICK or DOR-HDFLPLAST
