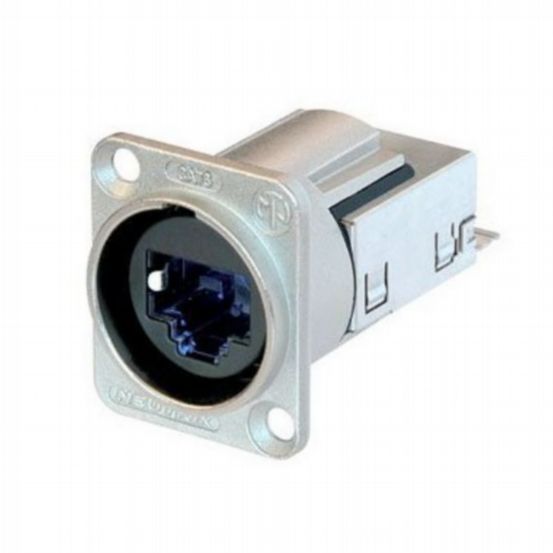

Penn Elcom EtherCON CAT6 D-Shape Chassis Connector NE8FDY-C6

Penn Elcom
Penn Elcom EtherCON CAT6 D-Shape Chassis Connector NE8FDY-C6

PE-CONE8FDY-C6

The Penn Elcom EtherCON CAT6 D-Shape Chassis Connector NE8FDY-C6 is a professional RJ45 panel connector designed for reliable high-speed network connections in demanding environments. Featuring a durable nickel plated metal housing and secure push-pull locking system, it provides excellent noise immunity and EMI protection. The tool-free IDC termination allows for quick and easy cable assembly, whilst CAT6 compliance supports data transmission speeds up to 10 GBit/s. IP65 protection in the mated condition ensures dependable performance against dust and water ingress.

Features & Benefits

  • Professional CAT6 EtherCON chassis connector
  • RJ45 D-shape panel mount design
  • CAT6 compliant to TIA/EIA 568B, ISO/IEC 11801 and EN 50173 standards
  • Supports data rates up to 10 GBit/s
  • Shielded system for high noise immunity and EMI protection
  • Rated current per contact: 1.5A
  • Suitable for 24 – 22 AWG cable
