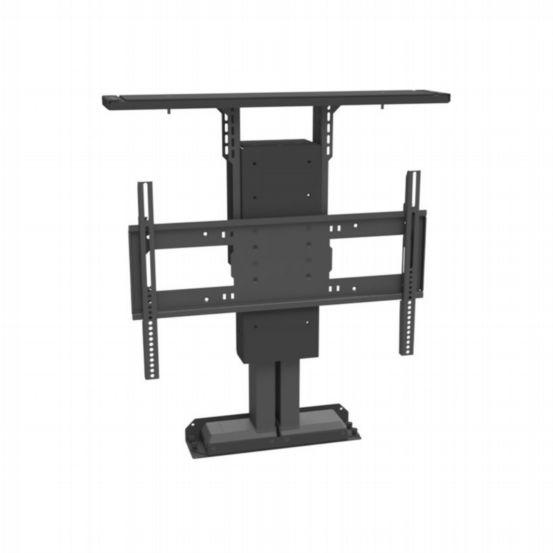

Nexus 21 DL-65S Pop-Up TV Lift
NX-DL-65S
The Nexus 21 DL-65S Pop-up TV Lift is a powerful and elegant lift mechanism designed for televisions up to 65″. With a lift capacity of 79.4 kg (175 lbs) and a 97.7 cm (38.5″) travel range, it offers smooth and quiet operation via a precision-engineered screw-driven steel mechanism. Its sleek design features no exposed tracks, gears, or scissors, ensuring a flawless concealed installation. The unit includes a handheld remote and integration hub for flexible control options (IR, IP, or contact closure) and comes with the Nexus 21 Safety Package featuring “Soft Start” and “Soft Stop” for smooth, reliable operation.
Features & Benefits
- Supports TVs up to 65″ (79.4 kg capacity)
- Travel distance: 97.7 cm (38.5″)
- Quiet operation at just 45 dB
- Screw-driven steel mechanism for long-term reliability
- “Soft Start” and “Soft Stop” technology for smooth movement
- Includes handheld remote and integration hub (IR, IP & contact closure control)
- No exposed tracks, gears, or scissors for a clean finish
- UL-recognised components for enhanced safety
- Power formats: UK (230V), Europe (230V), USA (110V), Japan (100V), Australia (240V)
- Lift speed: 3.8 cm per second (fully raises in 26 seconds)
- Dimensions: H 77.5–109.2 cm × W 76.8 cm × D 15.6 cm
