Middle Atlantic
Middle Atlantic SFR Series Swing Frame Wall Rack – 25 RU, SFR-25-18
Width
19.6 in (49.8 cm)
MA-SFR-25-18

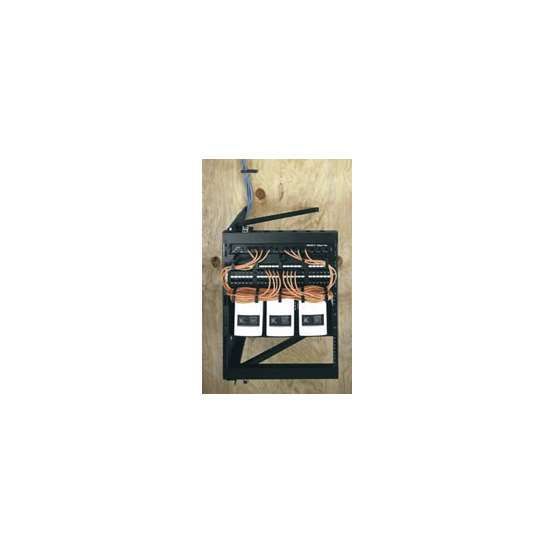

The Middle Atlantic SFR-25-18 Swing Frame Wall Rack features an innovative open-back design, perfect for mounting over existing equipment and obstacles such as conduit or telephone panels. Ideal for patch panels, hubs, and switches, this rugged steel rack provides a 100 lb (45.4 kg) weight capacity—the greatest strength in its class. The pivoting swing frame can be inverted left or right, opening 90º with a positive stop for easy cable access and punching down. Ready-to-assemble and flat-shippable via UPS, it includes a standard 10-32 threaded rackrail, abundant tie points, cable pass-throughs, 50 rack screws, and hook-and-loop cable fasteners.
Variations
Features & Benefits
- Rugged steel construction with 100 lb (45.4 kg) weight capacity
- Pivoting swing frame can be inverted left or right
- 90º swing with positive stop for easy cable access
- Standard 10-32 threaded rackrail with marked spaces
- Usable depth: 16 in (40.6 cm); usable height: 43.75 in (111.1 cm)
- Shipping weight: 46 lbs (20.9 kg); width: 19.6 in (49.8 cm); height: 49.97 in (126.9 cm)
