Middle Atlantic SFR Series Swing Frame Wall Rack – 20 RU

Middle Atlantic

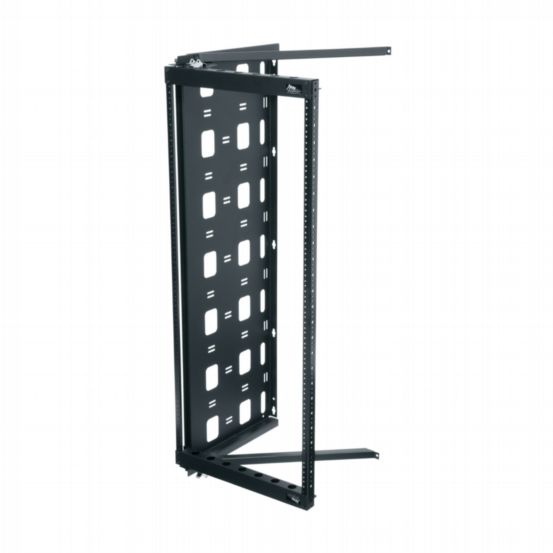

Middle Atlantic SFR Series Swing Frame Wall Rack – 20 RU

MA-SFR-20-24

The Middle Atlantic SFR-20-24 Swing Frame Wall Rack features an open-back wall-mount design, ideal for mounting over existing equipment and obstacles such as conduit or telephone panels. Perfect for patch panels, hubs, and switches, this rugged steel rack provides a 100 lb (45.4 kg) weight capacity—the greatest strength in its class. The pivoting swing frame can be inverted left or right, opening 90º with a positive stop for easy cable access and punching down. Ready-to-assemble and flat-shippable via UPS, it includes a standard 10-32 threaded rackrail, abundant tie points, cable pass-throughs, 50 rack screws, and hook-and-loop cable fasteners.

Features & Benefits

  • Rugged steel construction with 100 lb (45.4 kg) weight capacity
  • Open-back design maximises usable wall space
  • 90º swing with positive stop for easy cable access
  • Standard 10-32 threaded rackrail with marked spaces
  • Usable depth: 22 in (55.9 cm); usable height: 35 in (88.9 cm)
