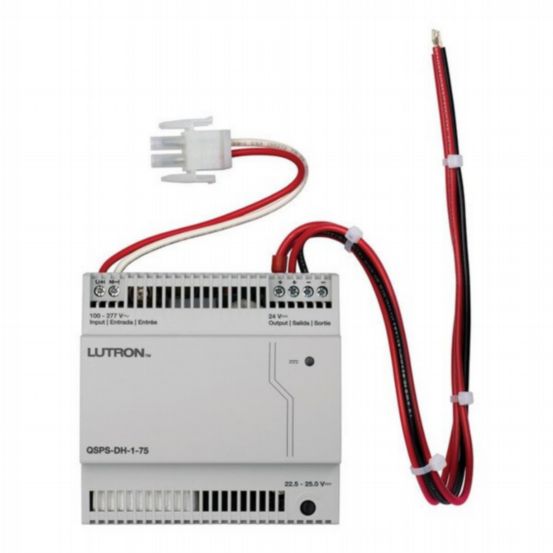

Lutron 75 PDU Multi-Device Power Supply with Wiring Harness
LU-QSPS-DH-1-75-H
The Lutron 75 PDU Multi-Device Power Supply provides reliable 24 VDC power for the HomeWorks QS system, supporting the processor as well as connected devices and interfaces. Designed for DIN rail mounting, it offers a compact and efficient installation solution while delivering stable performance for system-wide power distribution. Supplied with pre-installed wiring harnesses, it simplifies commissioning and ensures consistent connectivity across the system. Fully compliant with UL1310 for IEC SELV / NEC Class 2 applications, it is engineered for safe and dependable operation within professional lighting control installations.
Features & Benefits
- Provides power to HomeWorks QS processor, devices and system interfaces
- Delivers 24 VDC ±1% output, 2.5 A IEC SELV / NEC Class 2
- Supplies up to 75 Power Draw Units (PDUs) maximum system capacity
- Includes 2 pre-installed wiring harnesses for simplified installation
- DIN rail mountable (35 mm EN 60715 standard) for easy integration
- Wide input voltage range: 100–277 VAC, 50/60 Hz
- Conforms to UL1310, CE, cUL and NOM safety approvals
- Maximum load consumption must not exceed 75 PDUs (system limitation)
- Compact design: 90 mm x 90 mm x 61 mm
- Operating temperature: 0°C to 55°C (indoor use only)
- Operating humidity: 0% to 90% non-condensing
- Maximum calibration temperature: 60°C
- Heat output: 28 BTU/hr
- Ensures stable, system-wide power distribution for HomeWorks QS networks
