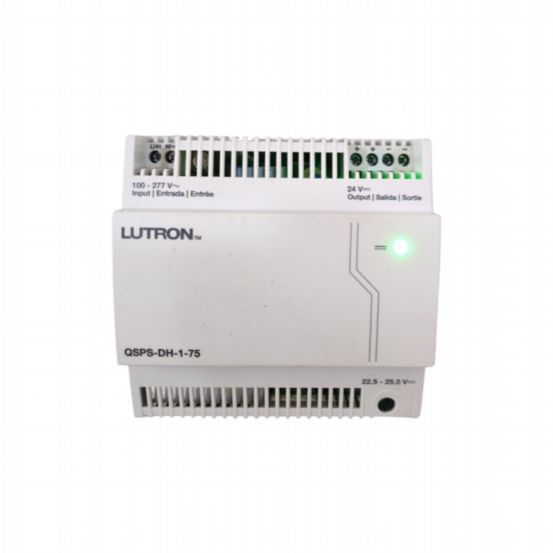

Lutron HomeWorks QS Link Power Supply – 75 PDU
LU-QSPS-DH-1-75
The Lutron QSPS-DH-1-75 QS Link Power Supply delivers reliable power for QS system devices, providing up to 75 Power Draw Units (PDUs) to support additional accessories and expand system capacity. Designed for DIN rail mounting, it supplies stable 24 V DC output and integrates seamlessly into HomeWorks QS systems. Ideal for powering compatible QS link devices, it ensures efficient and dependable operation while meeting high performance and energy efficiency standards.
Features & Benefits
- Provides up to 75 Power Draw Units (PDUs) on a QS link
- 24 V DC output (±1%) with 2.5 A SELV/PELV/NEC® Class 2 rating
- Input voltage: 100–277 V~ 50/60 Hz
- Typical current consumption: 0.5 A (277 V~), 0.7 A (230 V~), 1.0 A (120 V~), 1.3 A (100 V~)
- Designed to power QS system devices and accessories (not suitable for motorised shades)
- DIN rail mounting (35 mm) in accordance with EN 60715
- Compact dimensions: 90 mm × 90 mm × 61 mm
- Operating temperature range: 0 °C to 55 °C
- Indoor use only, up to 90% non-condensing humidity
- Maximum heat output: 28 BTU/hr
- Certified to UL, cUL, CE, and NOM standards
