Lutron

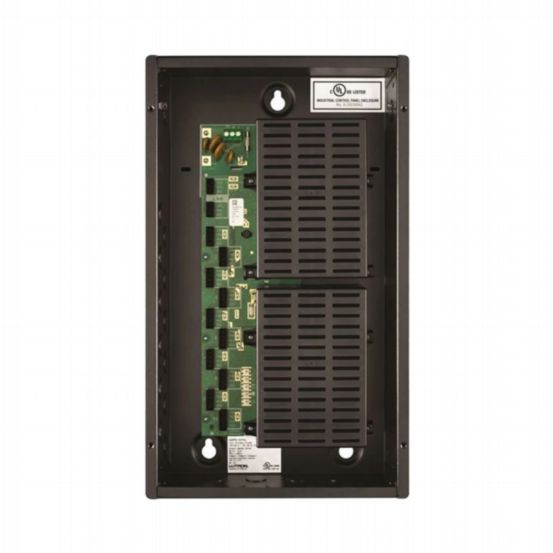

Lutron 10-Output Sivoia QS Smart Panel
LU-QSPS-10PNL
The Lutron QSPS-10PNL 10-Output Sivoia QS Smart Panel simplifies installation and wiring for systems using multiple Sivoia QS window treatments and compatible devices. Designed to be hardwired into a standard 120–240 V~ circuit, it provides ten NEC® Class 2/PELV outputs for both power and communication, helping to streamline system layout and improve organisation. Built-in diagnostics, smart protection features, and manual override controls make setup, testing, and maintenance more efficient while supporting reliable system performance.
Features & Benefits
- Ten NEC® Class 2/PELV outputs for Sivoia QS shades, drapery drives, keypads, and accessories
- Integrated power supplies compliant with U.S. Department of Energy Efficiency Level VI
- No replaceable fuses required due to built-in overload and miswire protection
- Simplified wiring topology for QS communication between system components
- Smart diagnostics to verify communication and reduce installation time
- Manual override buttons for easy system testing of shades and lighting
- Self-recoverable short circuit, overload, and over-temperature protection per output
- Surge protection rated +/- 6 kV (ANSI/IEEE C62.41-1991)
- ESD protection rated +/- 16 kV air discharge (IEC 61000-4-2)
- Indoor use only with wide operating temperature and humidity tolerance
