Lutron

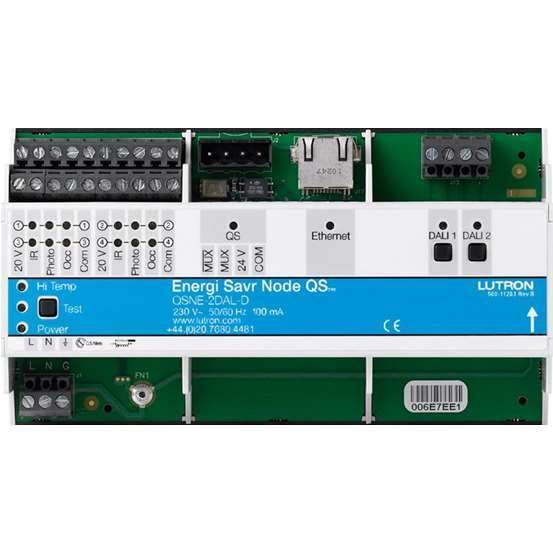

Lutron Energi Savr Node for DALI®
LU-QSNE-2DAL-D
The Lutron Energi Savr Node for DALI® is a DALI-2® certified, DIN rail-mounted application controller designed to manage DALI®-compliant digital addressable lighting systems. Acting as a single master controller, it provides power and control for two independent DALI® buses, supporting up to 64 devices per bus. It also enables integration with Lutron sensors and QS devices, delivering advanced lighting control, automation, and system flexibility. With built-in diagnostics, failure reporting, and support for tunable white and emergency lighting, it offers a comprehensive solution for intelligent lighting management.
Variations
Features & Benefits
- DALI-2® certified single master application controller
- Controls two independent DALI® buses with up to 64 devices each
- Provides DALI® bus power (128 mA guaranteed, 250 mA max per bus)
- Supports up to 16 DALI® groups per bus
- Compatible with DALI® emergency fixtures within Quantum systems
- Supports tunable white applications (with Quantum V3.4)
- Lamp and control gear failure reporting
- Automatic replacement of single channel control gear
- Configurable system parameters including fade rate, fade time, and light levels
- Power failure memory retains programming during outages
- Default configuration requires no commissioning
- Four occupancy sensor inputs for automated lighting control
- Four daylight sensor inputs for daylight-responsive adjustment
- Four IR receiver inputs for personal control
- Expandable via QS Sensor Modules (QSMs)
- Integrated QS link for system-wide communication and integration
