Lutron
Lutron Control Interface

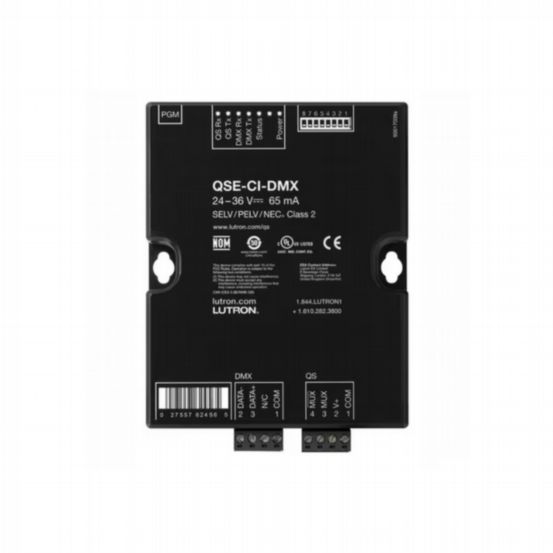

LU-QSE-CI-DMX
The Lutron QSE-CI-DMX Control Interface enables seamless integration between Lutron QS-based lighting control systems and DMX512-controlled devices, allowing advanced control of architectural and entertainment lighting. Depending on the system it is used within—GRAFIK Eye QS standalone, Quantum, Athena, or HomeWorks—it allows lighting zones to be mapped to single-channel or RGB/CMY DMX outputs for precise colour and intensity control. With support for up to 32 DMX channels per interface, it provides flexible, scalable control of DMX-enabled fixtures while maintaining compatibility across Lutron’s lighting platforms.
Features & Benefits
- Integrates Lutron QS systems with DMX512-controlled lighting and devices
- Compatible with GRAFIK Eye QS, Quantum, Athena and HomeWorks systems
- Maps zones to single DMX channels or 3-channel RGB/CMY control
- Supports up to 32 DMX channels per interface
- Enables advanced colour control via built-in RGB/CMY lookup table
- Customisable colour mapping using Lutron QS configuration software
- Allows DMX loads to be controlled as 1-channel lighting or 3-channel RGB/CMY
- Supports up to 16 interfaces per QS link in larger systems
- Each unit counts as 1 QS device and consumes 2 PDU
- Powered via 24–36 V DC SELV/PELV/NEC Class 2 supply (65 mA)
- QS link wiring length up to 2000 ft (610 m)
- DMX512 link length up to 1000 ft (305 m) with required terminators
- Provides integration between architectural lighting control and DMX ecosystems
- Indoor use only; operating temperature 0°C to 40°C
- CE, cULus, RoHS and NOM compliant
