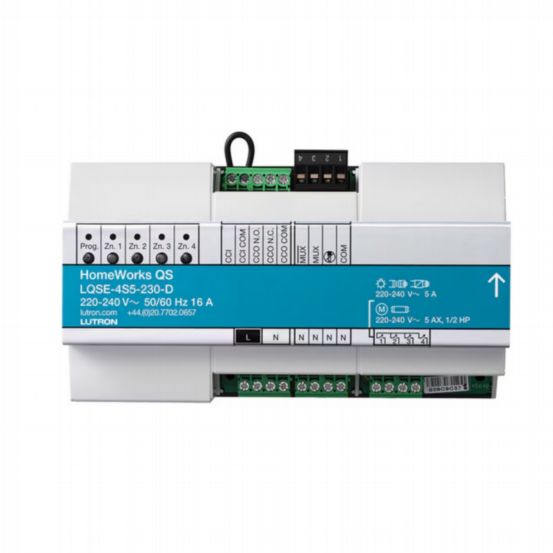

Lutron HomeWorks 4 Switch Module – 5A per Zone, 16A Max per Module
LU-LQSE-4S5-230-D
The Lutron LQSE-4S5-230-D Switching Power Module is a DIN-mounted solution designed for switching control of lighting loads within a HomeWorks QS system. Featuring four independent output zones, each rated at 5A (16A max per module), it delivers reliable performance across a range of load types including incandescent and low voltage lighting. With adaptive zero-cross switching to extend relay life, integrated diagnostics, and manual override capability, it provides efficient and dependable control for lighting applications.
Features & Benefits
- Four switched output zones (5A per zone, 16A max per module)
- Designed for use with Lutron HomeWorks QS systems
- Supports INC, MLV, ELV, and IEC/EN 60669 defined lighting loads
- Rated for motor loads up to 1/2 HP
- Adaptive zero-cross switching to maximise relay lifespan
- Integrated QS link for seamless system communication
- LED indicators for diagnostics and status monitoring
- Manual override buttons on module for local control
- Manual Override Contact Closure Input (CCI)
- Programmable Contact Closure Output (CCO)
- Power failure memory restores previous output states after outage
