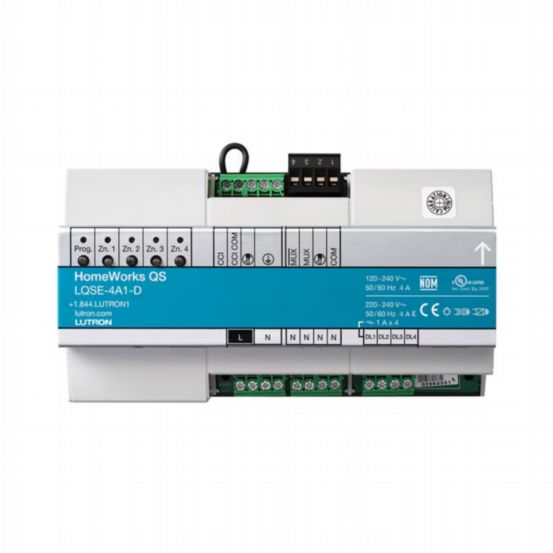

Lutron Adaptive Power Module

LU-LQSE-4A1-D

The Lutron Adaptive Power Module (LQSE-4A1-D-4) is a modular 4-zone lighting control solution designed for use within HomeWorks QS and myRoom systems. Engineered for precise phase-control dimming, it supports a wide range of load types including incandescent, halogen, electronic and magnetic low-voltage, and compatible dimmable LED/CFL sources. Featuring Lutron’s RTISS technology, it actively compensates for line-voltage fluctuations to ensure stable, flicker-free performance. With integrated diagnostics, manual override capability and seamless QS system integration, it provides reliable and flexible control for advanced lighting installations.

Features & Benefits

  • 4-zone adaptive power module for phase-control dimming
  • Compatible with HomeWorks QS and myRoom systems only
  • Supports leading-edge and trailing-edge dimming
  • Works with incandescent, halogen, ELV, MLV, neon/cold cathode and compatible LED/CFL loads
  • SSL7 compliant for solid-state lighting compatibility
  • RTISS technology compensates for line-voltage fluctuations for stable output
  • Integrated protection against temporary over-current and over-voltage conditions
  • QS link connectivity for seamless system integration
  • Each module supports up to 4 zones within a 512-zone QS system limit
  • Counts as 1 device on the QS link (system limit of 100 devices)
  • Manual zone override buttons for local load control
  • Manual override contact closure input (CCI) for system-wide override mode
  • Power failure memory restores previous state after outages
  • LED indicators provide diagnostic feedback and status monitoring
  • Configurable via HomeWorks QS or myRoom programming software (v9.0 or higher)
  • Single feed input design for simplified installation
  • Input voltage: 120–240 V~ or 220–240 V~ (50/60 Hz depending on region)
  • Maximum total input current: 4 A
  • Surge protection up to 6000 V and 3000 A
  • ESD protection exceeding IEC 60669-2-1 requirements
  • Indoor use only; relative humidity <90% non-condensing
  • Terminal compatibility: 18–12 AWG for mains, zones, QS link and CCI wiring
