Lutron

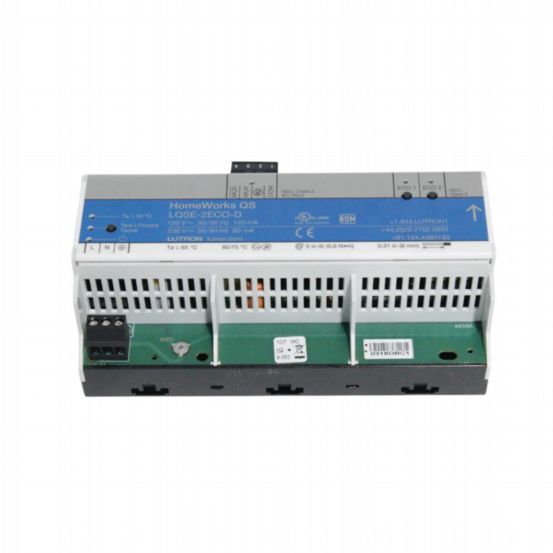

Lutron Power Module with EcoSystem®
LU-LQSE-2ECO-D
The Lutron Power Module with EcoSystem® is a DIN-rail mounted loop controller designed for use within HomeWorks® QS systems, providing power and control for EcoSystem®-compatible ballasts, LED drivers and devices. It supports two independent EcoSystem® loops, each capable of controlling up to 64 devices, enabling scalable and flexible lighting control across larger installations. Fully integrated via the QS link, it allows advanced programming through HomeWorks QS software, supporting zoning, diagnostics and system-wide lighting control with high reliability and precision.
Features & Benefits
- Controls up to 128 EcoSystem® devices across two independent loops (64 per loop)
- Provides EcoSystem® loop power up to 250 mA per loop (16 V DC output)
- Fully integrates with HomeWorks® QS systems via QS link connection
- Supports up to 8 fully loaded EcoSystem® loops per QS link
- Each module counts as 1 QS device within system limits
- Enables digital zoning and flexible lighting area configuration
- Automatic ballast/driver replacement and fault handling support
- EcoSystem® loop wiring is polarity-insensitive and topology-free
- Supports both mains and IEC PELV/NEC Class 2 wiring flexibility
- DIN rail mounted (9 module width, 161.7 mm) for panel integration
- Power failure memory retains programming settings
- Standby power: 7 W; full load thermal output: 24 BTU/hr
- Input voltage options: 120 V~ or 230 V~ (50/60 Hz)
- Operating temperature: 0°C to 65°C; indoor use only
- Relative humidity: <90% non-condensing
- Supports advanced diagnostics and test mode functionality for commissioning and maintenance
- CE, UL, cUL, NOM, C-Tick and ISO 9001 certified
- Designed for integration with HomeWorks QS wallstations and system programming software
