Lutron

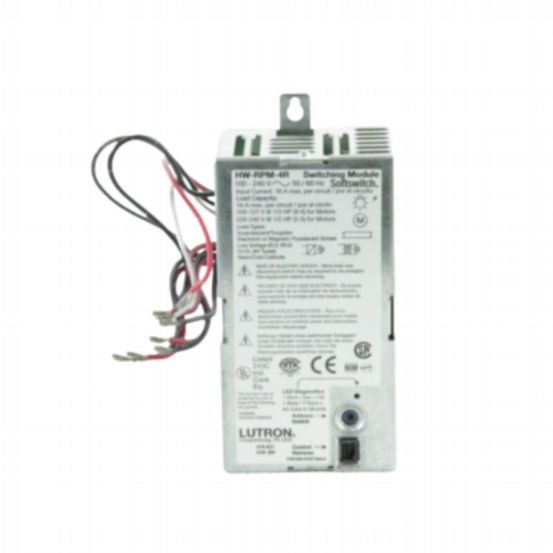

Lutron HomeWorks Remote Power Module – Non-Dim Relay Module
LU-HW-RPM-4R
The Lutron HW-RPM-4R Remote Power Module provides reliable switching control for up to four non-dim lighting or motor loads within a HomeWorks system. Each of the four independently controlled outputs is supplied by its own input, enabling robust load management for a variety of applications. Designed for installation within HWI-PNL series panels, the module replaces corresponding DIN rail terminal blocks and is recommended for mounting at the lowest available position to support efficient system layout and performance.
Features & Benefits
- Provides switching control for up to four independent non-dim loads
- Supports lighting loads up to 16 A per output
- Supports motor loads up to 1/3 HP at 100–120 V (8 A) or 1/2 HP at 220–240 V (5 A)
- Each load supplied by its own dedicated input for reliable operation
- Designed for integration into Lutron HomeWorks systems
- Mounted within HWI-PNL series panels using DIN rail configuration
- Replaces existing terminal blocks corresponding to installation position
- Recommended installation at the lowest level within the panel for optimal layout performance
