Lutron

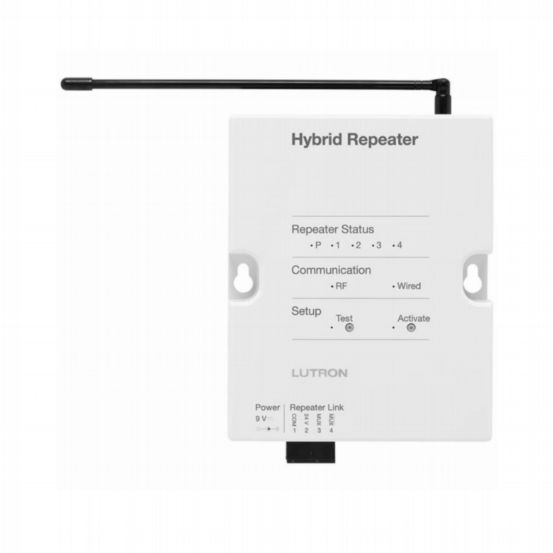

Lutron HomeWorks QS 868 MHz Hybrid Repeater
LU-HQK-REP
The Lutron HomeWorks QS 868 MHz Hybrid Repeater extends the range and reliability of wireless RF communication within HomeWorks QS systems. It enables seamless communication between dimmers, switches, keypads, shades, drapery controls and other system devices by strengthening and distributing RF signals across larger installations. By reducing interference and ensuring stable connectivity, the Hybrid Repeater helps maintain consistent system performance throughout the property. Up to four repeaters can be used per link, providing scalable RF coverage for complex or large-scale lighting and shading systems.
Features & Benefits
- Extends RF communication range for HomeWorks QS systems (868 MHz UK/Europe)
- Enables reliable communication between dimmers, switches, keypads, shades and other devices
- Supports up to 4 Hybrid Repeaters per system link for expanded coverage
- RF range of up to 30 ft (9 m) per repeater to device
- Up to 60 ft (18 m) between repeaters for extended system coverage
- Covers approximately 2500 sq ft (232 m²) per repeater system area
- Ensures stable, error-free wireless communication and reduces interference
- First repeater connects directly to HomeWorks QS processor via RF wired link
- Additional repeaters can be connected via wired or RF communication
- Powered via 9 V DC adapter (300 mA) and 24 V link connection (50 mA)
- Typical power consumption: 0.6 W
- Low-voltage Class 2 / PELV wiring supported for system integration
- Wall, ceiling or surface mount installation using supplied fixings
- Power failure memory restores previous state after interruption
- Designed for indoor use (0°C to 40°C, 0–90% humidity non-condensing)
- Surge and ESD protection compliant with IEEE C62.41 and IEC 61000-4-2
