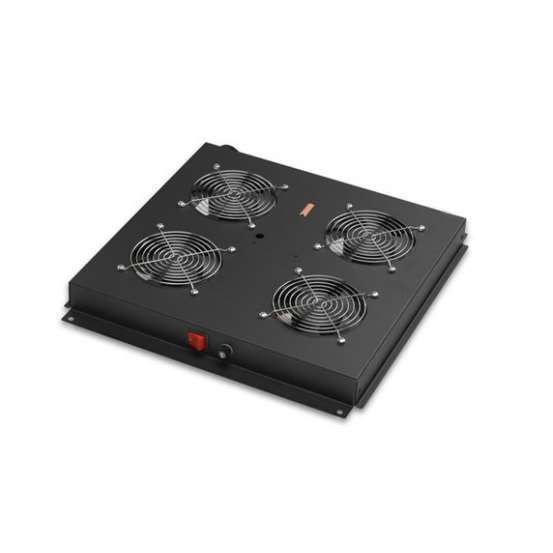

Lande FAN-ONF-4FFS-BL Quad Fan Cabinet Cooling Module with On/Off Switch – Black
LN-FAN-ONF-4FFS-BL
The Lande FAN-ONF-4FFS-BL Quad Fan Cooling Module provides an efficient ventilation solution for wall-mounted, free-standing and server cabinets. Featuring four pre-installed fans, the module offers convenient plug-and-run operation with integrated on/off switches and plugs for straightforward power and airflow management. Each fan delivers an airflow capacity of 2.3–3m³ per minute, helping improve air circulation and minimise heat build-up around installed equipment. Operating on a 220–240V AC power supply at 50/60Hz, the fans feature a power consumption of 13.8W/11.8W and operate at 2550/2750rpm. With a noise level of 42–47dB, a fan lifespan of up to 50,000 hours at 40°C and an operating temperature range of -10°C to +70°C, this module provides reliable cooling for professional IT and networking installations.
Variations
Features & Benefits
- Features four cooling fans for effective ventilation and airflow within equipment cabinets
- Features a plug-and-run design for straightforward setup and operation
- Delivers an airflow capacity of 2.3–3m³ per minute per fan
- Operates on a 220–240V AC power supply at 50/60Hz
- Features a power consumption of 13.8W/11.8W per fan
- Operates at 2550/2750rpm for effective air circulation
- Features a rated current of 0.07A/0.06A per fan
- Maintains a noise level of 42–47dB during operation
