Kramer. 32X32 Bsa Programmable Matrix Rs-232

Kramer

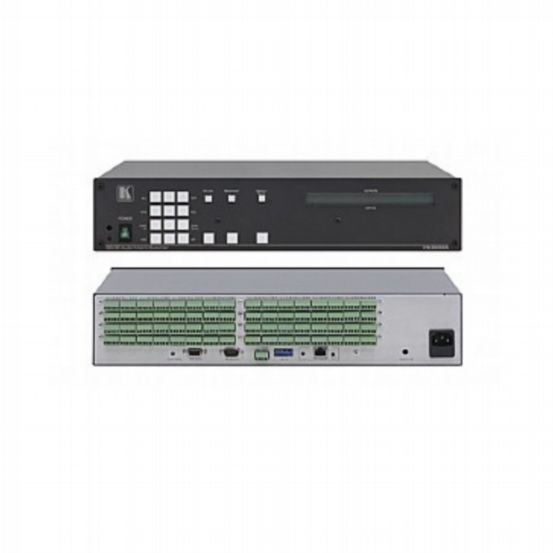

Kramer. 32X32 Bsa Programmable Matrix Rs-232

KE-VS-3232A

The VS-3232A is a high-performance matrix switcher for balanced stereo audio signals. The unit can route any or all inputs to any or all outputs simultaneously.

Further Information
kramerelectronics.co.uk/products/model.asp?pid=1357

Features & Benefits

  • Level Adjustment - Input level: +/- 20dB for each input; output volume: 0 to -100dB for each output.
  • S/N Ratio - >100dB at +20dBu/1kHz.
  • Linearity - Better than 0.1dB from -25dBu to +20dBu.
  • THD & Noise - <0.03%.
  • Frequency Response - Flat between 20Hz to 20kHz.
  • Standalone or VS-3232V(xl) Companion Switcher.
  • Audio-Follow-Video - When connected to the VS-3232V(xl).
  • Zero Cross Detection and Soft Mute.
  • Digital Input Sampling and Routing - Ensures zero crosstalk and high-quality audio.
  • Flexible Control Options - Front panel, RS-232 (K- Router™ Windows®-based software is included), RS-485, Ethernet and IR remote (included).
  • Communication Protocols - Kramer 2000 and Sierra ASCII.
  • Memory Locations - Stores multiple switches as presents to be recalled and executed when needed. Front Panel Lockout.
  • Take Button - Executes multiple switches all at once.
  • Worldwide Power Supply - 100-240V AC.
  • Standard 19” Rack Mount Size - 2U. Rack “ears” included.
