4K 60Hz 1: 4 DVI Distribution Amplifier (ReClocking) HDCP

Kramer - signal management
4K 60Hz 1: 4 DVI Distribution Amplifier (ReClocking) HDCP

KE-VM-400HDCPxl

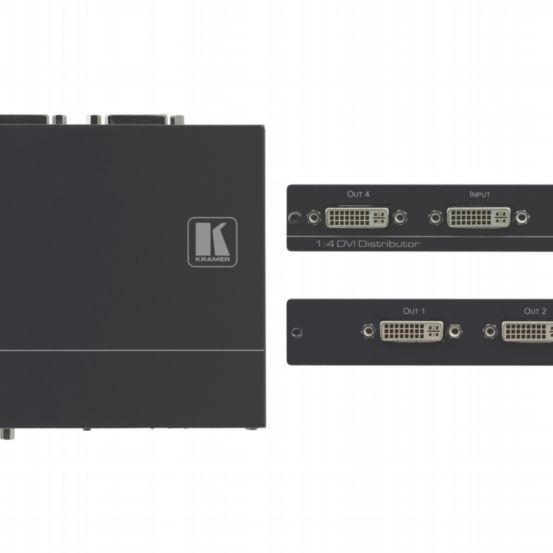

The VM-400HDCPxl is a 1:4 distributor for HDMI signals via DVI connectors. It takes one single link input, equalizes and reclocks the signal and distributes it to four identical outputs. With the appropriate adapter, it distributes signals having resolutions up to 4K@60 UHD (4:2:0), WUXGA and 1080p. * DECORA® is a registered trademark of Leviton Manufacturing Co., Inc

Features & Benefits

  • High Performance Distributor — 10.2Gbps (3.4Gbps per graphic channel). Single Link
  • Secured Operation — Highly–secured operation is ensured by lockable wiring connectivity with protection against unintentional cables connection
  • HDMI Signal Transmission — HDMI 2.0 and HDCP 1.4 compliant signal, supporting deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D. EDID signals are passed through from the source to the displays
  • I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for DVI source and display systems
  • User–Friendly Operation — Comprehensive signal distribution features and signal mode–forcing options such as RGB forcing, with convenient EDID selection front panel button
  • Cost–Effective Field Maintenance — Mini–USB connection for simple field firmware upgrade using the Kramer K–Upload tool. Status indicators for fast and effective troubleshooting
  • Easy Installation — Compact MegaTOOLS™ fan–less enclosure for over–ceiling mounting, or side–by–side rack mounting.
