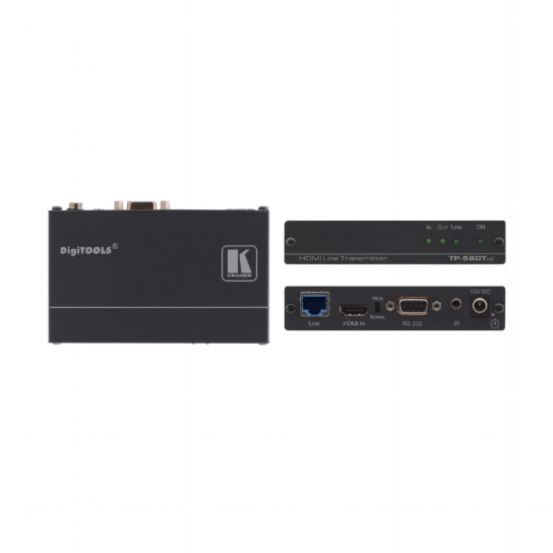

Kramer
TP-580Txr 4K60 4:2:0 HDMI HDCP 2.2 Transmitter with RS-232 & IR over Extended-Reach HDBaseT
KE-TP-580TXR
TP-580Txr 4K60 4:2:0 HDMI HDCP 2.2 Transmitter with RS-232 & IR over Extended-Reach HDBaseT
Further Information
KE-TP-580TXR Specification Sheet.pdf
Variations
Features & Benefits
- Max. Data Rate: 102Gbps (34Gbps per graphic channel)
- HDTV Compatible
- HDCP Compliance
- HDBaseT™ Technology
- HDMI Support: Deep colour, x.v.colour™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC
- 3D Pass-Through
- EDID PassThru: Passes EDID signals between the source and display
- 2K & 4K Support
- Bidirectional RS-232 & IR Interface. Commands and data can flow in both directions via the RS-232 interface, allowing status requests and remote control of the destination unit
- System Range: Up to 130m (430ft) normal mode; up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC-HDKat6a cables
- Cable: For optimum range and performance using HDBaseT™, use Kramers BC-HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non-Kramer CAT 6 cable may not reach these ranges
- Indicators: Status LEDs for input, output, link and power
- Compact DigiTOOLS®: 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T universal rack adapter
