HDMI Audio Embedder/De-Embedder

KE-FC-69

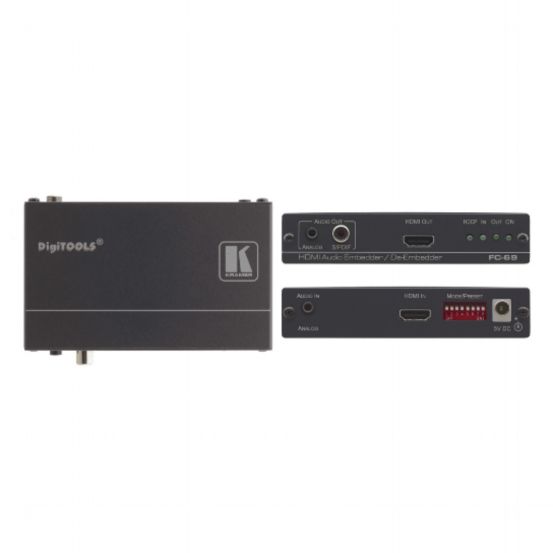

The FC-69 is a high-performance 4K@60Hz (4:2:0) UHD, 4Kx2K HDMI audio embedder and de-embedder. The unit can embed analog audio to the HDMI output or de-embed audio from the HDMI input or from the HDMI output Audio Return Channel to S/PDIF and unbalanced stereo audio outputs simultaneously.

Features & Benefits

  • Max. Resolution — 4K@60Hz (4:2:0) UHD, 4Kx2K
  • Maximum Data Rate — 8.91Gbps (2.97Gbps per data channel)
  • HDTV Compatible
  • HDCP Compliant
  • HDMI Support — ARC and HDMI uncompressed audio channels, deep colour, CEC
  • Audio Embedding — Even without an HDMI source
  • Audio de–Embedding — To unbalanced analogue and S/PDIF, selectable from input or ARC
  • Kramer Equalisation & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances
  • Sleep Mode — 5V on the output, following the input, allows the display to turn off when no video is being sent
  • Preconfigured Control Options — DIP–switches control locking/modifying EDID, HDCP, embedding/de–embedding and sleep mode functionality.
