Kramer

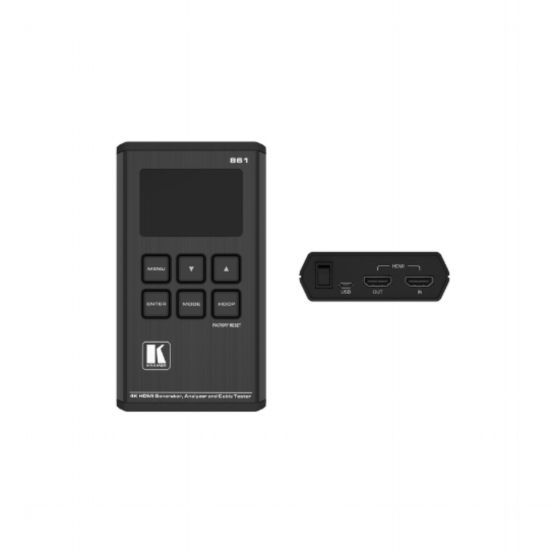

Kramer 86118G 4K HDR Pocket Signal Generator, Analyser & Cable Tester
KE-861
The Kramer 86118G is a compact, portable 4K HDR signal generator, analyser and cable tester designed for field and lab use, supporting resolutions up to 4K@60Hz (4:4:4). It features 23 built-in resolutions, 11 test patterns, and over a dozen AV analysis functions for HDMI signal verification, HDCP 1.4/2.2 analysis, EDID emulation, SCDC monitoring, and audio testing. The unit can generate up to 8 channels of LPCM audio and includes a cable tester capable of checking HDMI connectivity, 5V, CEC, and hotplug functionality. Supplied with a high-quality belt pouch and rechargeable Li–Ion battery, it provides over 5 hours of portable operation.
Variations
Features & Benefits
- Supports up to 4K@60Hz (4:4:4) resolution with HDR10, Dolby Vision and xvYCC input
- 23 built-in resolutions and 11 test patterns for versatile signal testing
- HDMI data packet, HDCP v1.4/2.2, EDID and SCDC analysis and emulation
- LPCM audio generation up to 8 channels with embedded output support (2.0, 5.1, 7.1)
- Cable testing for 4K HDMI cables, including 5V, CEC and hotplug detection
- OLED display and detailed OSD for rapid status updates and configuration
- USB port for firmware updates and data connectivity
