Kramer

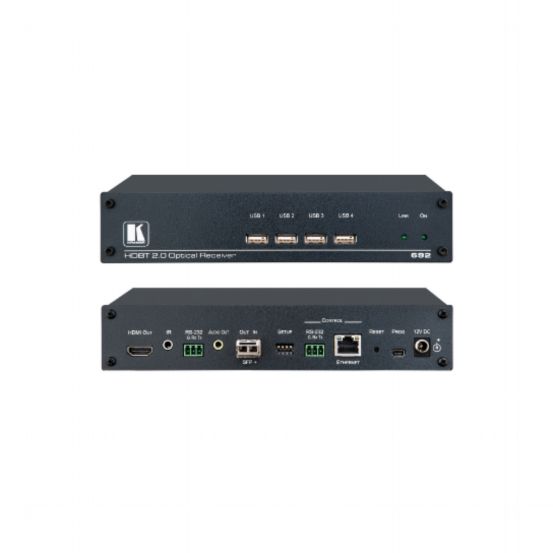

Kramer 692 4K60 4:2:0 HDMI MM/SM Fibre Receiver
KE-692
The Kramer 692 is a high-performance HDBaseT 2.0 fibre receiver for ultra-reach extension of 4K@60Hz (4:2:0) HDMI video, USB, Ethernet, RS–232, IR, and stereo audio signals over multi-mode or single-mode fibre. Receiving the HDBaseT 2.0 optical signal from a compatible transmitter, the 692 de-embeds digital audio to stereo analog outputs while simultaneously transmitting HDMI video, USB, Ethernet, RS–232, and IR signals, supporting distances up to 33km over single-mode fibre. It features HDCP 1.4 compliance, I–EDIDPro™ intelligent EDID processing, plug-and-play installation, multi-drop optical distribution, and full control-signal extension, making it ideal for professional AV, digital signage, and broadcast environments requiring high-quality, ultra-long-distance signal delivery.
Variations
Features & Benefits
- HDBaseT 2.0 fibre receiver (692) for HDMI, USB, Ethernet, RS–232, IR, and stereo audio de-embedding
- Supports 4K@60Hz (4:2:0) 24bpp HDMI video; HDCP 1.4 compliant
- Maximum data rate: 10.2Gbps (3.4Gbps per graphic channel); HDMI 2.0 support with deep colour, x.v.Color™, lip sync, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D
- Stereo analog audio de-embedding (drop-and-continue) for parallel audio routing
- USB 2.0 extension supports bidirectional HID and high-bandwidth peripherals
- Ethernet extension up to 100Mbps for LAN and device control
