Kramer

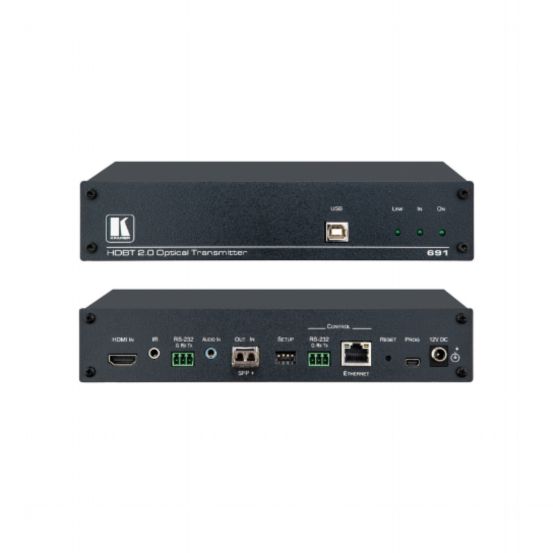

Kramer 691 4K60 4:2:0 HDMI MM/SM Fibre Transmitter
KE-691
The Kramer 691 is a high-performance HDBaseT 2.0 fibre transmitter designed for ultra-reach extension of 4K@60Hz (4:2:0) HDMI video along with USB, Ethernet, RS–232, IR, and embedded stereo audio signals. Converting all inputs into an HDBaseT 2.0 optical signal for transmission over multi-mode or single-mode fibre, it supports distances up to 33km (20.5 miles) over single-mode fibre. The 691 features HDCP 1.4 compliance, I–EDIDPro™ intelligent EDID processing, plug-and-play installation, multi-drop optical distribution, and advanced control signal extension, making it ideal for professional AV, digital signage, and broadcast applications requiring ultra-long-distance, high-bandwidth signal delivery.
Variations
Features & Benefits
- HDBaseT 2.0 fibre transmitter (691) for HDMI, USB, Ethernet, RS–232, IR, and stereo audio embedding
- Supports 4K@60Hz (4:2:0) 24bpp HDMI video; HDCP 1.4 compliant
- Maximum data rate: 10.2Gbps (3.4Gbps per graphic channel); HDMI 2.0 support with deep color, x.v.Color™, lip sync, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D
- Extends video and control signals up to 3km over multi-mode fibre, 33km over single-mode fibre
- USB 2.0 extension supports bidirectional HID and high-bandwidth peripherals
- Ethernet extension up to 100Mbps for LAN and device control
- Bidirectional RS–232 and IR extension for remote device control
- Stereo analog audio embedding (adds selectable audio to HDMI output)
