Hikvision LED

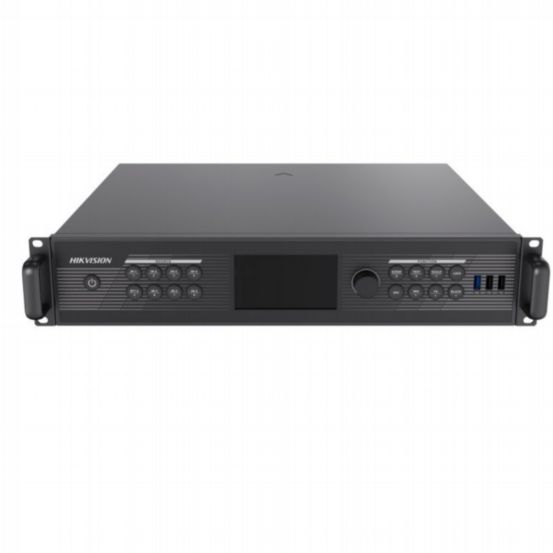

Hikvision LED Controller with 40 LED Outputs
HL-336800142
The Hikvision LED Controller with 40 LED outputs is a high-performance 3-in-1 solution that combines LED display control, video wall processing and digital signage functionality in a single device. Designed for large-scale LED installations, it features 40 RJ45 output ports and a total loading capacity of up to 26 million pixels, making it ideal for complex video walls and demanding commercial display environments. Powered by Android 12 and a quad-core ARM processor with 4GB RAM and 64GB storage, the controller delivers reliable performance, smooth 4K content playback and intuitive management through its integrated 4.5-inch touchscreen display. With support for multiple video sources, advanced layering capabilities and Genlock synchronisation, it provides the flexibility and precision required for professional AV applications.
Features & Benefits
- 3-in-1 design combining LED control, video wall processing and digital signage
- Features 40 RJ45 LED output ports for large-scale LED display installations
- Delivers a total loading capacity of up to 26 million pixels
- Supports display resolutions from 144 × 64 up to 16,384 × 16,384 pixels
- Supports 9 video input interfaces for flexible source connectivity
- Includes 3 × HDMI 2.0, 4 × HDMI 1.3, 1 × DisplayPort 1.2 and 1 × 12G-SDI inputs
- Supports a dedicated 4K signage input for integrated content playback
- Runs on Android 12 for a modern and user-friendly operating experience
- Powered by a quad-core ARM processor for reliable video processing
- Equipped with 4GB RAM and 64GB internal storage
- Features an integrated 4.5-inch touchscreen LCD for local configuration and control
- Supports up to 7 simultaneous video layers and windows
- Genlock support enables pixel-accurate synchronisation across multiple displays
