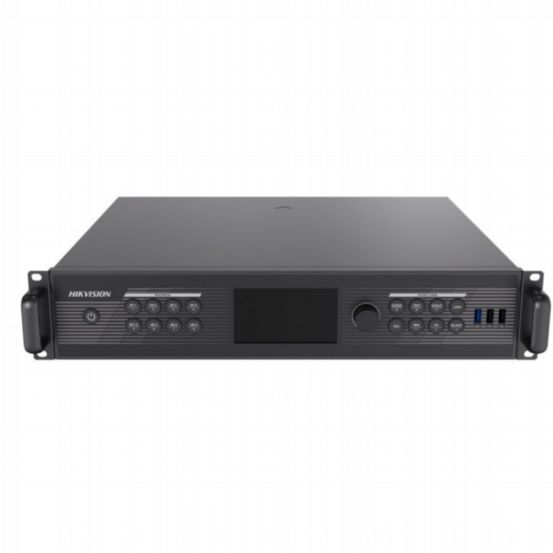

Hikvision LED Controller with 9 Video Inputs and 24 LED Outputs
HL-336800141
The Hikvision LED Controller with 9 video inputs and 24 LED outputs is a powerful 3-in-1 solution that combines LED display control, video wall processing and digital signage functionality within a single platform. Designed for professional LED display installations, it supports multiple source inputs, advanced layering capabilities and a total loading capacity of up to 15.6 million pixels. Running on Android 12 with a quad-core ARM processor, 4GB RAM and 64GB storage, the controller delivers smooth operation and intuitive management via its integrated 4.5-inch touchscreen display. With support for resolutions up to 16,384 × 16,384 pixels and Genlock synchronisation, it is ideal for demanding commercial AV, control room, corporate and digital signage applications.
Features & Benefits
- 3-in-1 design combining LED control, video wall processing and digital signage
- Supports 9 video input interfaces for flexible source integration
- Features 24 RJ45 LED output ports for large-scale LED displays
- Delivers a total loading capacity of up to 15.6 million pixels
- Supports display resolutions from 144 × 64 up to 16,384 × 16,384 pixels
- Includes 3 × HDMI 2.0, 4 × HDMI 1.3, 1 × DisplayPort 1.2 and 1 × 12G-SDI inputs
- Runs on Android 12 for a modern and user-friendly operating experience
- Powered by a quad-core ARM processor for reliable performance
- Equipped with 4GB RAM and 64GB internal storage
- Features an integrated 4.5-inch touchscreen LCD for local control
- Supports up to 7 simultaneous video layers and windows
