Hikvision LED

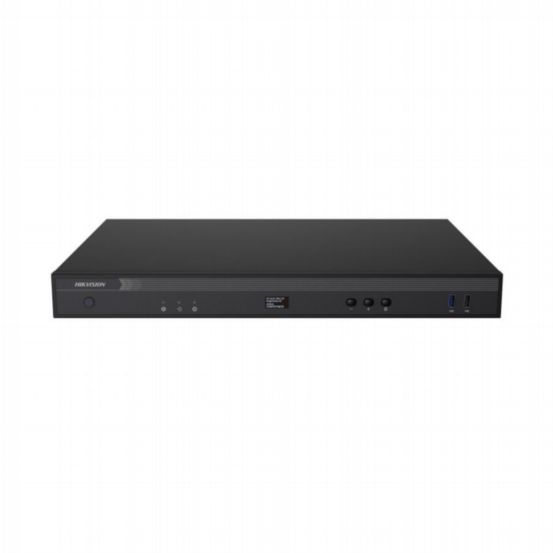

Hikvision 20-Port 2-in-1 LED Controller
HL-336800112
The Hikvision 20-Port 2-in-1 LED Controller is a high-performance LED display processing system designed for professional video wall and large-scale LED screen applications. Built in a 1U industrial-grade rackmount chassis, it integrates advanced video processing, window management and control functions into a single unified platform. Supporting up to 20 output channels with a total loading capacity of 13 MP, it delivers stable and high-quality image performance for demanding commercial environments. With HDMI 2.0, DVI and HDMI 1.4 inputs, it supports high-resolution video up to 4K@60Hz and ensures flexible signal compatibility. Advanced features such as multi-window display, scene presets, pixel-level calibration and intelligent system monitoring make it ideal for control rooms, broadcast environments and complex LED installations.
Features & Benefits
- 20 × RJ45 output channels with up to 13 MP total loading capacity
- 1U industrial-grade rackmount design for professional installations
- Full-colour 128 × 64 OLED status display for system monitoring
- Supports HDMI 2.0 (4K@60Hz), DVI and HDMI 1.4 inputs
- Supports up to 3 video input channels with flexible signal management
- Multi-window display support with up to 7 simultaneous windows
- Up to 10 configurable scene presets for quick switching
- Supports video wall splicing, roaming windows and custom layouts
- High refresh rate output up to 3840 Hz for smooth display performance
- Pixel-level calibration for accurate colour and image uniformity
- Dual power supply and network port backup for system reliability
- Advanced system monitoring (CPU, memory, temperature, network status)
- Supports RS-485 and network-based centralised control integration
