Hikvision 12-Port 2-in-1 LED Controller

Hikvision LED

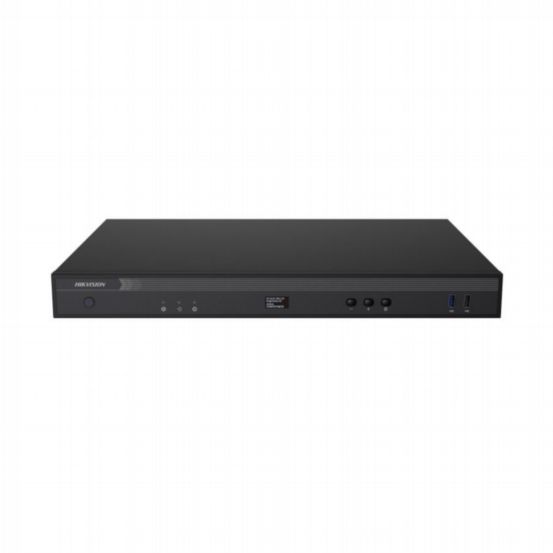

Hikvision 12-Port 2-in-1 LED Controller

HL-336800111

The Hikvision 12-Port 2-in-1 LED Controller is a professional-grade LED display processing solution designed for high-performance, full-colour video wall and LED screen applications. Built in a 1U rackmount chassis, it combines advanced video processing, signal management and display control in a single integrated platform. Supporting multiple video inputs including HDMI 2.0, DVI and HDMI 1.4, it delivers ultra-high-definition signal processing with flexible window management, custom layouts and seamless image scaling. With a total loading capacity of up to 7.8 MP, it supports precise pixel-level calibration, high refresh rates and advanced image enhancement features, making it ideal for demanding commercial LED installations requiring stability, flexibility and high visual quality.

Features & Benefits

  • 12 × LED loading output ports with up to 7.8 MP total capacity
  • Maximum single-device resolution up to 8192 × 8192 pixels
  • Supports HDMI 2.0 (4K@60Hz), HDMI 1.4 and DVI video inputs
  • 1U rackmount design with industrial-grade chassis construction
  • Built-in 128 × 64 OLED status display for real-time monitoring
  • Supports up to 7 simultaneous display windows with custom layouts
  • Flexible window management including roaming, scaling and splicing
  • Supports RGB and YUV 4:4:4 output with lossless image quality
  • High refresh rate output up to 3840 Hz with ultra-low latency
  • Supports up to 10 scene presets for quick configuration switching
  • Pixel-level calibration for precise colour and brightness uniformity
  • Advanced display modes including text, advertisement, video, cinema and security
  • Adjustable brightness, contrast, hue and colour temperature settings
  • Dual power supply and network port redundancy for improved reliability
  • Supports HDCP 2.2 content protection and custom EDID configuration
  • Includes subtitle support with adjustable font, colour and scrolling speed
  • Remote and web-based management with centralised control capability
  • Supports RS-485 integration for central control and IoT connectivity
