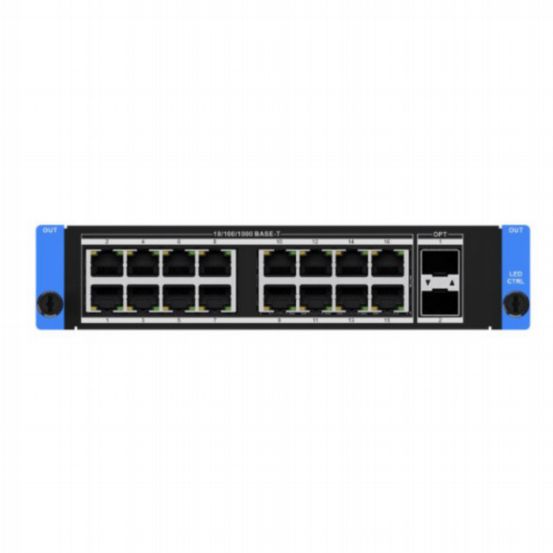

Hikvision 16-Port Gigabit + SFP LED Output Board

HL-317100207

The Hikvision 16 Network Port with SFP LED Output Board is a professional LED controller module designed for high-performance video wall and large-scale LED display systems. Occupying two slots, it integrates advanced LED control functionality and enables direct connection to LED cabinets via either Gigabit Ethernet or optical fibre links. It provides 16 Gigabit Ethernet (RJ45) output ports alongside 2 × 10Gbps SFP+ optical ports for flexible and high-speed signal distribution. Optical ports mirror grouped Gigabit port data for reliable transmission across extended distances. Supporting custom resolutions and high load capacity, it delivers stable and scalable performance for demanding LED installations.

Features & Benefits

  • 16 × Gigabit Ethernet (RJ45) LED output ports
  • 2 × 10Gbps SFP+ optical output ports
  • Integrated LED controller functionality
  • Flexible use of Ethernet or fibre output connections
  • Optical port mapping: 1–8 and 9–16 Gigabit port groups
  • Supports up to 16 display layers per board
  • Total load capacity: up to 10.4 million pixels
  • Resolution support: 64 × 64 up to 16384 × 8192
  • Supports custom resolution and scalable system design
