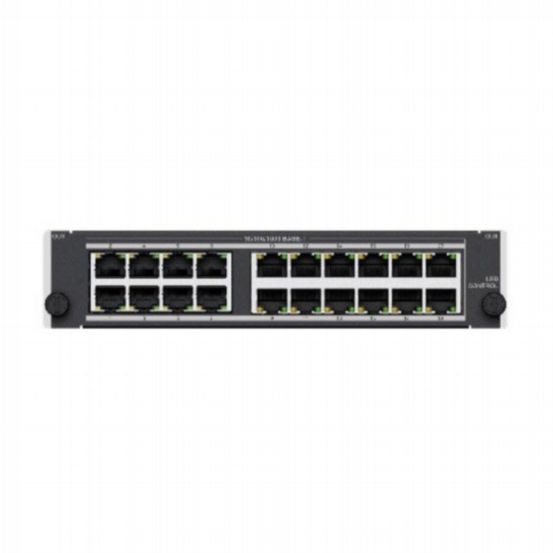

Hikvision 20-Port Gigabit LED Controller Output Board
HL-317100206
The Hikvision 20 Network Port LED Output Board is a high-performance LED controller module designed for professional video wall and large-scale LED display systems. Occupying two slots within a compatible Hikvision chassis, it integrates advanced LED control functionality and provides direct connection to LED cabinets via Gigabit Ethernet (RJ45) ports. With support for up to 20 output ports, it enables flexible system design with custom resolutions and scalable load capacity. The board supports both mini loading mode and standard loading mode, allowing adaptable performance based on display requirements. With HDR output support and advanced multi-layer processing, it ensures high-quality image reproduction for demanding LED installations.
Features & Benefits
- 20 × Gigabit Ethernet (RJ45) LED output ports
- Occupies 2-slot chassis configuration
- Integrated LED controller functionality
- Direct connection to LED cabinets via network cables
- Supports custom resolution and scalable output load
- Mini loading mode: 0.65MP per Ethernet port
- Standard loading mode: 2.925MP per Ethernet port (screen compatible)
- Total load capacity: up to 10.4 million pixels
- Supports HDR output for enhanced image quality
- Up to 16 display layers per board
- Resolution support: 64 × 64 up to 16384 × 8192
