Hikvision LED

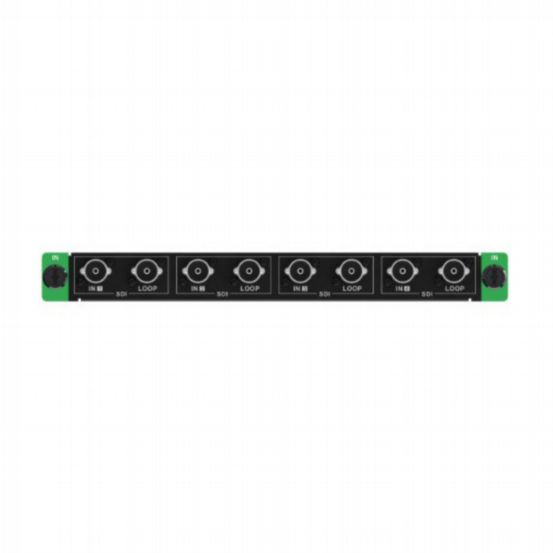

Hikvision 4-Channel 12G-SDI 4K Video Input Board
HL-317100202
The Hikvision DS-C66S-04SDI/4K (O-STD) is a professional 4-channel 12G-SDI input board designed for high-end video wall controller systems requiring broadcast-grade signal processing. It supports ultra-high-definition 4K input signals with exceptional stability and reliability, making it ideal for mission-critical environments such as broadcast studios, live production, and advanced control rooms. With support for multiple SDI formats including 12G-SDI, 6G-SDI, 3G-SDI, and HD-SDI, it ensures broad compatibility with professional video equipment. The board also supports HDR formats and audio embedding, delivering high-quality video and audio performance within Hikvision’s modular video wall architecture.
Features & Benefits
- 4-channel 12G-SDI 4K input board
- Supports resolutions up to 4096 × 2160 @ 60Hz
- Compatible with 12G-SDI, 6G-SDI, 3G-SDI, and HD-SDI formats
- HDR10 support (SMPTE ST 2084/2086) and HLG
- Dual-channel audio support with 4 in-band audio interfaces
- Audio sampling rates: 32 / 44.1 / 48 kHz
- 4x SDI loop-through outputs for signal distribution
