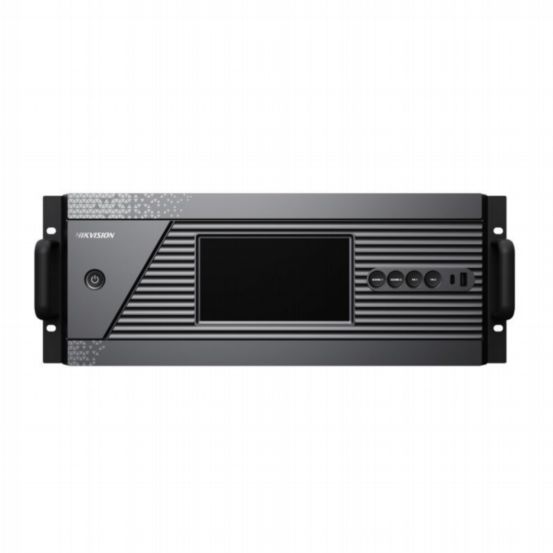

Hikvision 48-Channel Video Wall Controller (12-Slot, 4U Rack Mount)

Hikvision LED
Hikvision 48-Channel Video Wall Controller (12-Slot, 4U Rack Mount)

HL-317100194

The Hikvision DS-C66S-S12 (O-STD) Video Wall Controller is a high-performance central management solution designed for professional control rooms and large-scale surveillance environments. Supporting decoding of up to 48 IP camera channels in Full HD (1080p at 30fps), it delivers clear and reliable real-time video processing for mission-critical applications. The system features a 12-slot modular architecture with 6 input and 6 output slots, enabling flexible configuration and scalability. It supports simultaneous control of up to 8 video walls, advanced multi-layer processing, and multiple window layouts including 1, 4, 6, 8, 9, and 16-screen divisions. With robust hardware design and intuitive operation, it provides stable 24/7 performance for demanding monitoring environments.

Features & Benefits

  • 48-channel Full HD (1080p) IP video decoding at 30fps
  • Supports control of up to 8 independent video walls
  • 12-slot modular chassis (6 input + 6 output slots)
  • 4U rack-mounted design for standard 19-inch racks
  • Supports multi-window layouts: 1 / 4 / 6 / 8 / 9 / 16 split
  • Up to 16 display layers per output port
  • Up to 16 layers per controller board
  • 24/7 continuous operation for mission-critical use
  • 7-inch LCD touchscreen for intuitive control
  • Supports up to 128 programmable display scenes
  • 550W power supply for reliable operation
