Hikvision LED

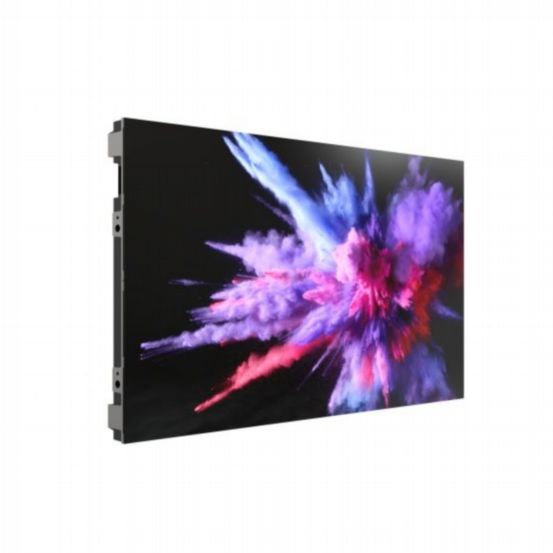

Hikvision P1.2 Copper-LED Indoor dvLED Module (300 × 168.75mm)
HL-317006681
The Hikvision P1.2 Copper-LED Module (DS-D4012CW-2F/A) is a high-performance fine-pitch LED display module designed for professional indoor video wall applications requiring exceptional clarity, brightness, and reliability. Featuring a 1.2mm pixel pitch and Copper-LED technology, it delivers sharp, detailed visuals with excellent contrast and wide 160° viewing angles. With a brightness level of 600 cd/m² and a high 5000:1 contrast ratio, it ensures vivid and consistent image reproduction even in bright environments. Built for integration with Hikvision DS-D40W-2F cabinets, it supports stable signal transmission via HIK-Cat.6 and is engineered for reliable long-term operation. Its robust design, wide operating temperature range, and IP65 protection rating make it suitable for demanding indoor and semi-protected environments.
Features & Benefits
- P1.2 Copper-LED fine-pitch indoor LED module
- Module size: 300 × 168.75mm
- Designed for DS-D40W-2F cabinet compatibility
- 600 cd/m² brightness for clear visual output
- 5000:1 high contrast ratio for deep image detail
- 160° horizontal and vertical viewing angles
- HIK-Cat.6 signal transmission system
- Power consumption: 160W
- Wide operating temperature range: -10°C to 40°C
- IP65-rated protection for enhanced durability
- LED backlight with high stability and uniformity
- 27" equivalent display area (per module assembly context)
