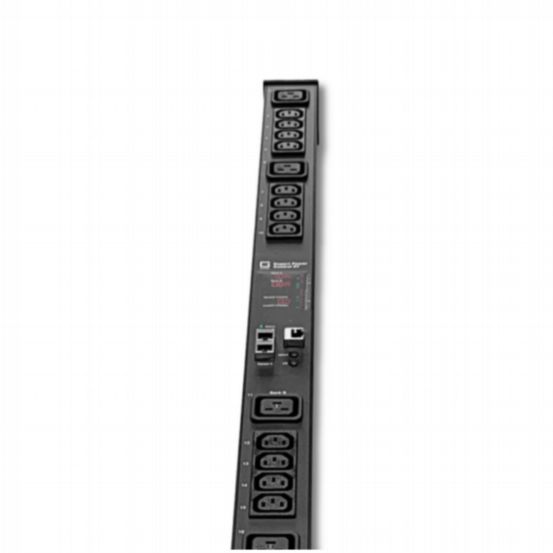

GUDE 87-1210-18 20-Fold Switched & Metered PDU

GUDE Systems
GUDE 87-1210-18 20-Fold Switched & Metered PDU

GS-87-1210-18

The GUDE 87-1210-18 Expert Power Control ensures enhanced operational security and energy efficiency for AV/IT racks. It minimizes outages of critical IT and AV infrastructure and enables early detection of issues through proactive power and environment monitoring. Designed for vertical installation, it provides full control for up to 20 consumers in 0 HU and allows remote reboot or automatic self-healing via integrated watchdogs. Integration is simple via REST API, HTTPS, SNMP, Telnet, and MQTT, while controlled switching off of devices contributes to measurable energy savings and reduced CO2 emissions.

Features & Benefits

  • Event and schedule controlled switching
  • Precise current metering of up to 9 electrical units
  • 2 connectors for plug-and-play sensors
  • No height unit required due to vertical installation in the rack
  • Simple and quick mounting due to integrated mounting straps
  • NTP function can be activated
  • Integrated overvoltage protection type 3
  • Each power port can be switched via HTTP(S), SNMP, ModbusTCP or command line interface via Telnet, SSH and MQTT
  • Programmable on/off sequences for remote reboots (Remote Reboot)
  • Power ports can be switched when preset sensor thresholds are exceeded
  • Self-healing function thanks to 20-channel watchdog: Each power port can be assigned its own Watchdog (ICMP/TCP), which initiates an automatic restart if necessary
  • Switching state and switch-on delay up to 9999 seconds (166 minutes) individually adjustable for each output port after power failure
  • Current peaks due to increased inrush currents are automatically prevented by sequential switch-on with a latency of 1 second
  • Power consumption metering (kWh) with 2 energy counters: one counter counts consistently, the other counter is resettable
  • Metering of current (A), voltage (V), phase angle, power factor, frequency (Hz), active power (W), apparent power (VA) and reactive power (VAr)
  • 2 connectors for combined plug-and-play sensors (temperature, humidity and air pressure) to prevent often occurring physical hazards like overheating and increased humidity or air pressure
  • Integrated overvoltage protection type 3 prevents damage to the device and connected loads
  • Long-life High-Inrush Relays prevent welding of relay contacts during inrush current peaks
  • Generation of status messages and alarms (e-mail, syslog, SNMP traps, MQTT, SSH, Telnet)
  • Encrypted e-mails (SSL, STARTTLS)
  • Access protection by IP access control
  • Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH
  • Password protected access
  • Beeper for audible alarm when sensor limits are exceeded/deceeded
  • Easy-to-read LED display for total current, IP address, and sensor values
  • Firmware update via Ethernet during operation (no restart required)
  • Simple configuration via web browser, Windows or Linux program
  • Dynamic assignment of IP address via DHCP or manual assignment of static IP address
  • Integrated type 3 overvoltage protection (L-N, L/N-PE), status retrievable via network
  • High-inrush relay: max. 4 sec: 30 A / max. 20 ms: 80 A
  • Measurement of current (A), voltage (V), phase angle, power factor, frequency (Hz), active power (W), apparent power (VA) and reactive power (VAr)
  • Encrypted communication through SSL (TLS 1.1, 1.2, 1.3)
  • Vertical mounting, 0 RU
  • LxWxH: 135 x 8 x 6.5 cm (including mounting brackets)
  • Weight: approx. 2.9 kg
  • Operating temperature: 0-50 °C
  • Storage temperature: -20 – 70 °C
  • Relative humidity: 0 – 95 % (non condensing)
  • 1 power supply IEC C20 (max. 16 A, 230 V)
  • 16 power ports IEC C13 (max. 10 A)
  • 4 power ports IEC C19 (max. 16 A)
  • 1 Ethernet connector RJ45 (10/100 Mbit/s)
  • 2 sensor connectors (RJ45) for plug-&-play sensors
