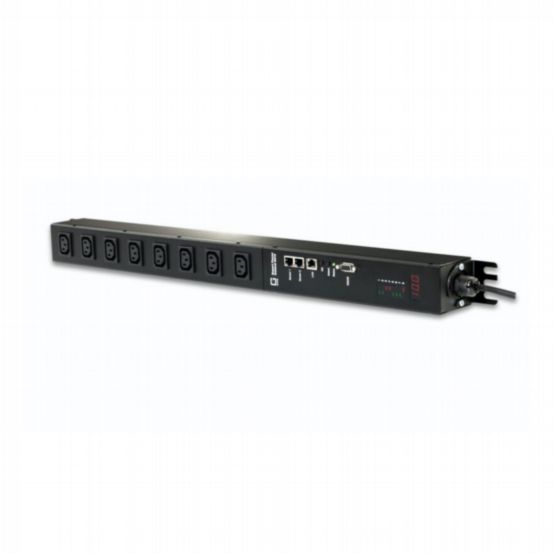

GUDE 8314-2 8-Fold Vertical Switched & Metered PDU

GUDE Systems
GUDE 8314-2 8-Fold Vertical Switched & Metered PDU

GS-83142

GUDE Expert Power Control 8314-2 is a vertical 19-inch 0U intelligent PDU with 8 switchable IEC C13 outlets for IT and AV racks. It offers precise input and outlet metering, event- and schedule-based switching, and sequential start-up to prevent inrush currents. Featuring API integration (REST API, HTTPS, SNMP, Telnet, MQTT) and a self-healing 8-channel watchdog, it ensures reliable, energy-efficient power management. Plug-and-play sensors monitor temperature, humidity, and air pressure, while long-life relays and overvoltage protection safeguard connected equipment.

Features & Benefits

  • Event and schedule controlled switching
  • Input current metering of up to 9 electrical units
  • 2 connectors for plug-and-play sensors
  • Simple and quick mounting due to integrated mounting straps
  • NTP function can be activated
  • Each power port can be switched via HTTP(S), SNMP, ModbusTCP or command line interface via Telnet, SSH, MQTT and serial interface
  • Programmable on/off sequences for remote reboots (Remote Reboot)
  • Power ports can be switched when preset sensor thresholds are exceeded
  • Self-healing function thanks to 8-channel watchdog: Each power port can be assigned its own Watchdog (ICMP/TCP), which initiates an automatic restart if necessary
  • Switching state and switch-on delay up to 9999 seconds (166 minutes) individually adjustable for each output port after power failure
  • Current peaks due to increased inrush currents are automatically prevented by sequential switch-on with a latency of 1 second
  • Power consumption metering (kWh) with 2 energy counters: one counter counts consistently, the other counter is resettable
  • Metering of current (A), voltage (V), phase angle, power factor, frequency (Hz), active power (W), apparent power (VA) and reactive power (VAr)
  • 2 connectors for combined plug-and-play sensors (temperature, humidity and air pressure) to prevent often occurring physical hazards like overheating and increased humidity or air pressure
  • Long-life High-Inrush Relays prevent welding of relay contacts during inrush current peaks
  • Generation of status messages and alarms (e-mail, syslog, SNMP traps, MQTT, SSH, Telnet)
  • Encrypted e-mails (SSL, STARTTLS)
  • Access protection by IP access control
  • Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH
  • Password protected access
  • Beeper for audible alarm when sensor limits are exceeded/deceeded
  • Easy-to-read LED display for displaying total current, IP address and sensor values
  • Firmware update via Ethernet during operation (no restart required)
  • Simple and flexible configuration via web browser, Windows or Linux program
  • Dynamic assignment of an IP address via DHCP or manual assignment of static IP address
  • Rapid commissioning thanks to free and reliable drivers from our technology partners
  • High-inrush relay: max. 4 sec: 30 A / max. 20 ms: 80 A
  • Measurement of key electrical parameters: current (A), voltage (V), phase angle, power factor, frequency (Hz), active power (W), apparent power (VA) and reactive power (VAr)
  • Encrypted communication through SSL (TLS 1.1, 1.2, 1.3)
  • Vertical mounting, 0 HU
  • LxWxH: 69/77 x 7 x 6 cm (length excl./incl. rotatable mounting brackets)
  • Weight: approx. 3.0 kg
  • Length mains cable: 2 m
  • Operating temperature: 0-50 °C
  • Storage temperature: -20 – 70 °C
  • Relative humidity: 0 – 95 % (non condensing)
  • 1 power supply IEC C20 (max. 16 A, 230 V)
  • 8 power ports IEC C13 (max. 10 A)
  • 1 Ethernet connector RJ45 (10/100 Mbit/s)
  • 1 serial interface RS232 (Sub-D, 9-pin)
  • 2 connectors (RJ45) for plug-&-play sensors
