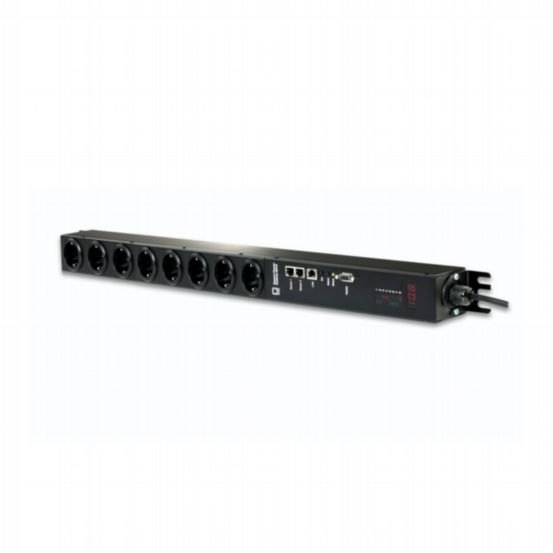

GUDE 8314-1 8-Fold Switched & Metered Vertical PDU

GUDE Systems
GUDE 8314-1 8-Fold Switched & Metered Vertical PDU

GS-83141

The Expert Power Control 8314-1 is an 8-port switched and metered vertical PDU with Type F sockets, designed for reliable, energy-efficient power management in IT and AV installations. With precise power metering, programmable remote reboot, and integrated self-healing watchdogs, it provides proactive monitoring, reduces downtime, and improves operational reliability. Its plug-and-play sensor ports, encrypted communication, and flexible network integration via REST API, SNMP, HTTPS, Telnet, or MQTT make it ideal for secure, smart, and efficient infrastructure management.

Features & Benefits

  • 8x Type F power ports for secure and reliable connections
  • Individual outlet switching via HTTP(S), SNMP, ModbusTCP, Telnet, SSH, MQTT, or serial interface
  • Self-healing 8-channel watchdog allows automatic device restart to prevent downtime
  • Event and schedule-controlled switching for energy efficiency and automation
  • Sequential switch-on prevents inrush current peaks and protects connected devices
  • Accurate metering of current, voltage, power factor, frequency, and energy consumption (kWh)
  • Dual energy counters: one continuous, one resettable for precise tracking
  • Two RJ45 sensor ports for temperature, humidity, or air pressure monitoring
  • Long-life high-inrush relays for durability under peak loads
  • Encrypted communication (TLS 1.1–1.3, SSH) and IP-based access control for secure operation
  • Audible and network alerts via e-mail, SNMP traps, syslog, or MQTT
  • Easy-to-read LED display for total current, IP address, and sensor values
  • Firmware updates via Ethernet without rebooting
  • Flexible vertical installation (0U) with rotatable mounting brackets
  • Power supply: IEC C20, max. 16 A, 230 V; 2 m mains cable
  • Dimensions: 69/77 × 7 × 6 cm (length excl./incl. brackets), weight approx. 3.0 kg
  • Operating temperature: 0–50 °C, humidity: 0–95 % non-condensing
