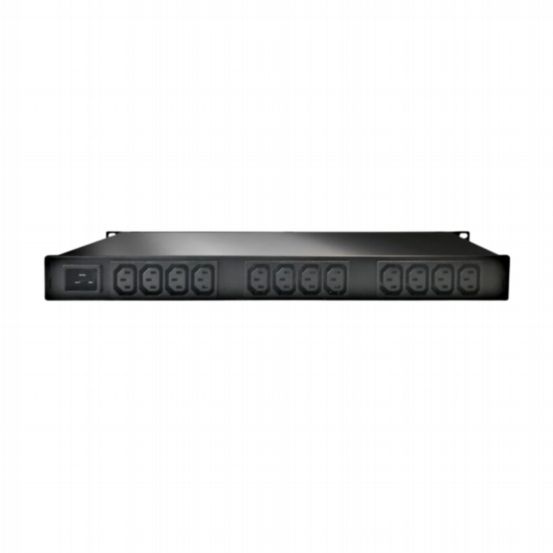

GUDE 8041-1 12-Fold Switched & Metered PDU

GUDE Systems
GUDE 8041-1 12-Fold Switched & Metered PDU

GS-80411

Expert Power Control 8041-1 provides enhanced operational security and energy efficiency for 19-inch installations. It helps reduce and shorten outages in critical IT and AV infrastructure and enables proactive monitoring of power and environmental conditions. With integrated energy metering and programmable switching functions, it allows cost and CO₂ savings by controlling devices efficiently. The compact 1 HU design integrates easily into standard 19-inch racks and supports plug-and-play sensors for temperature, humidity, and air pressure monitoring.

Variations

Features & Benefits

  • Event and schedule controlled switching
  • Precise current metering of up to 9 electrical units and residual current
  • 2 connectors for plug-and-play sensors
  • Simple and quick mounting due to integrated mounting straps
  • NTP function can be activated
  • Integrated overvoltage protection type 3
  • Each power port can be switched via HTTP(S), SNMP, ModbusTCP or command line interface via Telnet, SSH, MQTT and serial interface
  • Programmable on/off sequences for remote reboots (Remote Reboot)
  • Power ports can be switched when preset sensor thresholds are exceeded
  • Self-healing function thanks to 12-channel watchdog: Each power port can be assigned its own Watchdog (ICMP/TCP), which initiates an automatic restart if necessary
  • Switching state and switch-on delay up to 9999 seconds (166 minutes) individually adjustable for each output port after power failure
  • Current peaks due to increased inrush currents are automatically prevented by sequential switch-on with a latency of 1 second
  • Power consumption metering (kWh) with 2 energy counters: one counter counts consistently, the other counter is resettable
  • Metering of current (A), voltage (V), phase angle, power factor, frequency (Hz), active power (W), apparent power (VA) and reactive power (VAr)
  • Metering of differential current type A (mA)
  • 2 connectors for combined plug-and-play sensors (temperature, humidity and air pressure)
  • Integrated type 3 overvoltage protection prevents damage to the device and connected loads
  • Long-life High-Inrush Relays prevent welding of relay contacts during inrush current peaks
  • Generation of status messages and alarms (e-mail, syslog, SNMP traps, MQTT, SSH, Telnet)
  • Encrypted e-mails (SSL, STARTTLS)
  • Access protection by IP access control
  • Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH
  • Password protected access
  • Beeper for audible alarm when sensor limits are exceeded/deceeded
  • Easy-to-read LED display for displaying total current, IP address and sensor values
  • Firmware update via Ethernet during operation (no restart required)
  • Simple and flexible configuration via web browser, Windows or Linux program
  • Dynamic assignment of an IP address via DHCP or manual assignment of static IP address
  • Rapid commissioning thanks to free and reliable drivers from our technology partners
  • High-inrush relay: max. 4 sec: 30 A /max. 20 ms: 80 A
  • Measurement of key electrical parameters: current (A), voltage (V), phase angle, power factor, frequency (Hz), active power (W), apparent power (VA) and reactive power (VAr)
  • Measurement of residual current type A (mA)
  • 19-inches, 1 HU
  • LxWxH: 43.9 x 17.8 x 4.4 cm (without mounting brackets)
  • Weight: approx 2.7 kg
  • Operating temperature: 0-50 °C
  • Storage temperature: -20 – 70 °C
  • Relative humidity: 0 – 95 % (non condensing)
  • 1 power supply IEC C20 (max. 16 A, 230 V)
  • 12 power ports IEC C13 (max. 10 A)
  • 1 Ethernet connector RJ45 (10/100 Mbit/s)
  • 1 serial interface RS232 (Sub-D, 9-polig)
  • 2 sensor connectors (RJ45) for plug-&-play sensors
