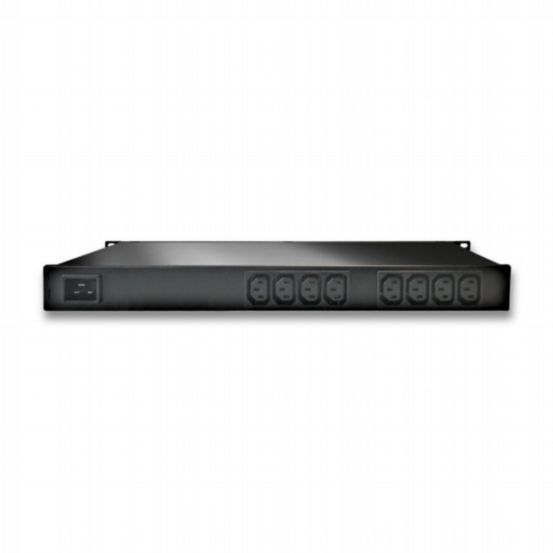

GUDE 8035-2 8-Fold Switched & Metered PDU

GUDE Systems
GUDE 8035-2 8-Fold Switched & Metered PDU

GS-80352

The 8-Fold Switched and Metered PDU 8035-2 ensures fewer and shorter outages for critical IT and AV infrastructure. It combines proactive per-port power monitoring, environmental sensing, and self-healing automation to detect issues early, minimise downtime, and optimise energy efficiency. With IEC C13 Lock sockets, integrated surge protection, secure network communication, and programmable remote control, it provides reliable, measurable, and safe power for server rooms, broadcast environments, and professional AV installations.

Variations

Features & Benefits

  • 8 IEC C13 Lock power sockets for secure connection of professional equipment
  • Event and schedule controlled switching
  • Remote switching and monitoring of each port via HTTP(S), SNMP, ModbusTCP, Telnet, SSH, MQTT or serial interface
  • Proactive per-port power and environment monitoring for early fault detection
  • Self-healing function with 8-channel watchdog for automatic device restart
  • Energy-efficient operation with measurable electricity and CO₂ savings
  • Programmable on/off sequences for scheduled switching and remote reboot
  • Sequential port activation prevents current surges with 1-second delay between outputs
  • Switching state and switch-on delay up to 9999 seconds individually adjustable per port after power failure
  • Power consumption metering (kWh) per port with continuous and resettable counters
  • Measurement of current, voltage, frequency, power factor, phase angle, active, apparent and reactive power per port
  • Residual current monitoring type A (and type B on request)
  • Two RJ45 connectors for plug-and-play sensors (temperature, humidity, air pressure)
  • Integrated type 3 overvoltage protection to prevent damage to device and connected loads
  • High-inrush relays prevent welding during peak currents (max. 30 A/4 s, 80 A/20 ms)
  • Real-time alerts and status messages via e-mail, syslog, SNMP traps, MQTT, SSH, Telnet
  • Encrypted e-mails (SSL, STARTTLS)
  • Access protection via IP control and password-protected login
  • Encrypted communication via SSL (TLS 1.1–1.3) and SSH
  • Audible alarm when sensor thresholds are exceeded
  • Easy-to-read LED display showing total current, IP address, and sensor values
  • Firmware updates via Ethernet during operation without restart
  • Simple configuration via web browser, Windows or Linux software
  • DHCP or static IP address assignment
  • 19-inch, 1 HU rack-mount with integrated mounting straps
  • Dimensions (L × W × H): 43.9 × 17.8 × 4.4 cm (without brackets)
  • Weight: approx. 2.9 kg
  • Operating temperature: 0–50 °C
  • Storage temperature: –20–70 °C
  • Relative humidity: 0–95 % non-condensing
  • Electrical connections: 1 IEC C20 power input (max. 16 A, 230 V), 8 IEC C13 Lock power outputs (max. 10 A), 1 Ethernet RJ45 (10/100 Mbit/s), 1 RS232 serial interface (Sub-D, 9-pin), 2 RJ45 connectors for plug-and-play sensors
  • Minimises downtime through proactive monitoring and self-healing functionality
  • Improves energy efficiency with per-port metering and controlled switching
  • Protects connected equipment from electrical faults and surges
  • Integrates seamlessly with IT and AV infrastructure
  • Ideal for server rooms, broadcast facilities, and professional AV installations
