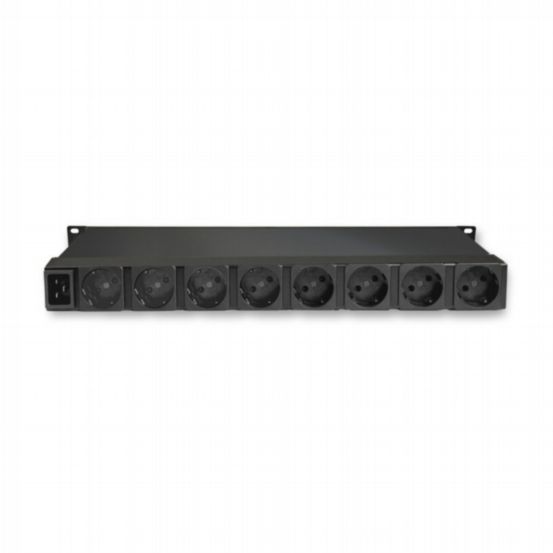

GUDE 8031-3 8-Fold Switched & Metered PDU
GS-80313
The Expert Power Control 8031-3 provides operational security and energy efficiency for 19-inch IT and AV installations. With per-port switching, precise metering, self-healing watchdogs, and integrated overvoltage protection, it reduces outages, prevents inrush damage, and enhances reliability while supporting energy-efficient operation.
Variations
Features & Benefits
- 8 Safety Socket Type F power ports for secure connection of professional devices
- Remote switching and monitoring of each port via HTTP(S), SNMP, ModbusTCP, Telnet, SSH, MQTT, or serial interface
- Proactive power and environment monitoring for early detection of faults and failures
- Self-healing function with 8-channel watchdog for automatic restart of connected devices
- Event- and schedule-controlled switching with programmable on/off sequences for remote reboot
- Sequential port activation prevents current surges with 1-second latency
- Power consumption metering (kWh) with two counters: one continuous, one resettable
- Measurement of current, voltage, phase angle, power factor, frequency, active, apparent, and reactive power
- Metering of differential current type A
- Connectors for combined plug-and-play sensors (temperature, humidity, air pressure) to prevent overheating, high humidity, or air pressure
- Integrated type 3 overvoltage protection (SPD) to safeguard device and connected loads
- Long-life High-Inrush Relays prevent welding of relay contacts during inrush current peaks
- Generation of status messages and alarms via e-mail, syslog, SNMP traps, MQTT, SSH, Telnet
- Encrypted communication via SSL (TLS 1.1, 1.2, 1.3), SSH and encrypted e-mails (SSL, STARTTLS) with IP access control and password protection
- Easy-to-read LED display for total current, IP address, and sensor values
- Firmware update via Ethernet without restart
- Simple configuration via web browser, Windows, or Linux software
- Dynamic IP assignment via DHCP or manual static IP
- Rapid commissioning with free and reliable drivers from technology partners
- 19-inch, 1 HU
- L × W × H: 43.9 × 17.8 × 4.4 cm (without mounting brackets)
- Weight: approx. 2.7 kg
- Operating temperature: 0–50 °C
- Storage temperature: –20–70 °C
- Relative humidity: 0–95 % non-condensing
- Electrical connections: 1 IEC C20 (max. 16 A, 230 V)
- 8 Safety Socket Type F (max. 16 A)
- 1 Ethernet RJ45 connector (10/100 Mbit/s)
- 1 RS232 serial interface (Sub-D, 9-pin)
- 2 RJ45 connectors for plug-and-play sensors
- Demonstrably fewer and shorter outages of critical IT and AV infrastructure with measurable energy and CO₂ savings
