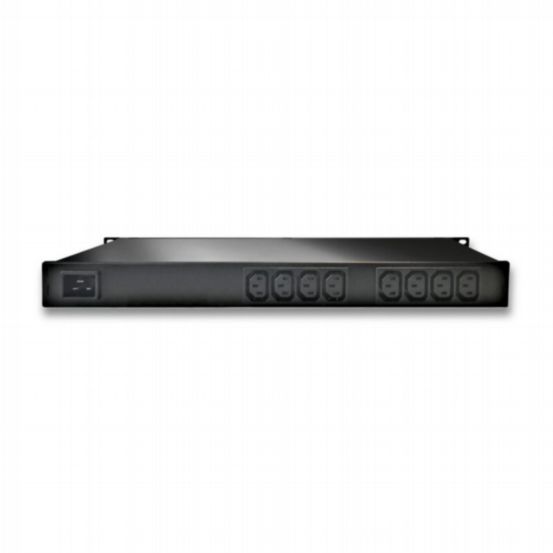

GUDE 8031-2 8-Fold Switchedf & Metered PDU

GUDE Systems
GUDE 8031-2 8-Fold Switchedf & Metered PDU

GS-80312

The 8-Fold Switched and Metered PDU 8031-2 delivers reliable, intelligent power distribution for critical IT and AV infrastructure. Designed to minimise downtime and enhance energy efficiency, it offers proactive power and environmental monitoring, remote switching, and integrated watchdog functionality for self-healing operation. With IEC C13 Lock power ports, robust overvoltage protection, and secure network communication, this PDU is the ideal solution for data centres, control rooms, and AV installations requiring dependable and measurable power control.

Variations

Features & Benefits

  • 8 IEC C13 Lock power sockets for secure connection of professional equipment
  • Remote switching and monitoring of each port via HTTP(S), SNMP, ModbusTCP, Telnet, SSH, MQTT or serial interface
  • Proactive power and environment monitoring for early detection of faults and failures
  • Self-healing watchdog function for automatic restart of connected devices
  • Energy-efficient operation with measurable savings in electricity costs and CO₂ emissions
  • Power consumption metering (kWh) with one continuous and one resettable counter
  • Measurement of current, voltage, frequency, power factor, phase angle, active, apparent and reactive power
  • Programmable on/off sequences for scheduled switching and remote reboot
  • Sequential port activation prevents current surges with a 1-second delay between outlets
  • Residual current monitoring type A for enhanced electrical safety
  • Integrated type 3 overvoltage protection to safeguard connected devices
  • High-inrush relay design supports peak loads up to 30 A (4 s) / 80 A (20 ms)
  • Two RJ45 connectors for plug-and-play sensors (temperature, humidity, air pressure)
  • Encrypted communication via SSL (TLS 1.1–1.3) and SSH for secure remote control
  • Password protection and IP access control for restricted management
  • Real-time alerts via e-mail, syslog, SNMP traps, MQTT, SSH or Telnet
  • Audible alarm when sensor thresholds are exceeded
  • LED display shows total current, IP address and live sensor data
  • Configuration via web browser, Windows or Linux software
  • Firmware updates via Ethernet during operation without restart
  • DHCP or static IP configuration for flexible network integration
  • 19-inch, 1 HU rack-mount design with integrated mounting straps for fast installation
  • NTP time synchronisation for event scheduling and accurate logging
  • Dimensions (L × W × H): 43.9 × 17.8 × 4.4 cm (without brackets)
  • Weight: approx. 2.7 kg
  • Operating temperature: 0–50 °C
  • Storage temperature: –20–70 °C
  • Relative humidity: 0–95 % (non-condensing)
  • Electrical connections: 1 IEC C20 power input (max. 16 A, 230 V), 8 IEC C13 Lock power outputs (max. 10 A each), 1 Ethernet RJ45 connector (10/100 Mbit/s), 1 RS232 serial interface (Sub-D, 9-pin), 2 RJ45 sensor connectors for plug-and-play sensors
  • Minimises downtime through proactive monitoring and automatic recovery
  • Improves energy efficiency with intelligent metering and control
  • Protects connected equipment against electrical faults and power surges
  • Integrates easily with existing IT and AV network infrastructure
  • Ideal for server rooms, broadcast facilities and AV control environments
