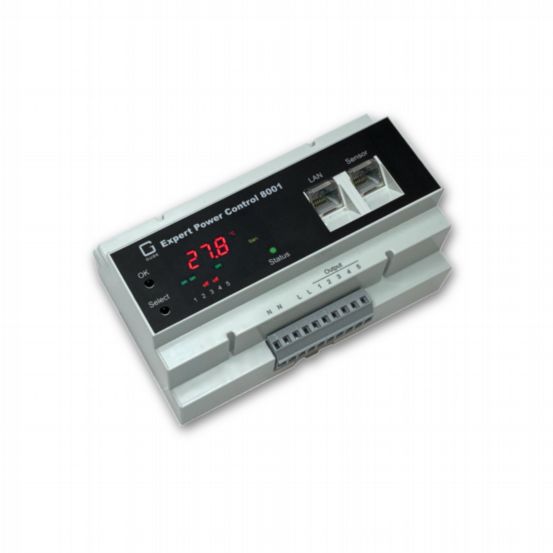

GUDE 8001-1 DIN Rail-Mounted Device

GUDE Systems
GUDE 8001-1 DIN Rail-Mounted Device

GS-80011

The GUDE 80011 provides reliable DIN rail-mounted power control and monitoring for IT and AV installations. With 5 individually switchable outputs and precise per-port metering, it ensures operational reliability, energy efficiency, and early detection of environmental or electrical issues.

Features & Benefits

  • 5 individually switchable power outputs for remote control via HTTP(S), SNMP, ModbusTCP, Telnet, SSH, MQTT/MQTTS, or serial interface
  • Per-port metering of current, voltage, phase angle, power factor, frequency, active, apparent, and reactive power for precise energy monitoring
  • Event- and schedule-controlled switching with programmable on/off sequences for remote reboots
  • Self-healing function with watchdog for automatic restart of assigned outputs
  • Sequential port activation prevents current surges with 1-second latency
  • Zero Voltage Switching (ZVS) avoids high switching currents by switching at the zero crossing of AC voltage
  • Integrated type 3 surge protection (SPD) safeguards the device and connected loads
  • Long-life High-Inrush Relays prevent welding of contacts during inrush peaks
  • Connector for plug-and-play sensors (temperature, humidity, air pressure) to prevent overheating, increased humidity, or high air pressure
  • LED indicators for output switching status and device status
  • Generation of status messages and alarms via e-mail, syslog, SNMP traps, MQTT, SSH, Telnet
  • Encrypted communication via SSL (TLS 1.1, 1.2, 1.3) and SSH with IP access control and password protection
  • Easy DIN rail mounting for professional installations
  • Firmware update via Ethernet without restart
  • Simple configuration via web browser, Windows, or Linux software
  • Dynamic IP assignment via DHCP or manual static IP
  • Dimensions and weight optimised for DIN rail integration
  • Operating temperature: 0–50 °C
  • Storage temperature: –20–70 °C
  • Relative humidity: 0–95 % non-condensing
  • Electrical connections: 1 power supply input, 5 switchable outputs, RJ45 connector for plug-and-play sensors, optional serial interface
  • Early detection of hazardous conditions with optional environmental sensors
  • Enhances operational reliability, reduces downtime, and supports energy-efficient operation of critical IT and AV infrastructure
