GUDE Systems

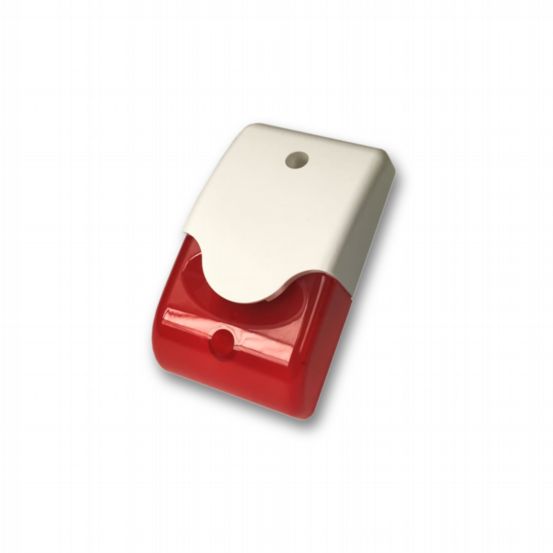

GUDE 7940 Optical-Acoustic Alarm Transmitter
GS-7940
The GUDE 7940 Combined Alarm Transmitter provides increased security in IT environments by enabling early alarming and extending existing alarm chains. It supports visual or audible-visual alarms and is designed for fast, easy installation both indoors and in protected outdoor areas. Its robust plastic housing ensures durability and reliable operation.
Features & Benefits
- Extends existing alarm chains quickly
- Triggered alarm: visual or audible-visual*Intermittent tone with over 100 dB sound pressure
- Bright red flashing light
- Easy installation indoors and in protected outdoor areas (IP34)
- Compact plastic housing: LxWxH 122 x 73 x 43 mm
- External power supply via 12 V
- Connection cable length: 400 mm
- Suitable for: Expert Net Control 2111-Series, Expert Net Control 2302-1, Expert Sensor Box 7214-Series
- 3-core connection cable
- Siren sound pressure: 100 dB
- Siren sound pressure: 100 dB
- Flashlight frequency: 2 Hz
- Power supply: 12 V
- Material: Plastic
