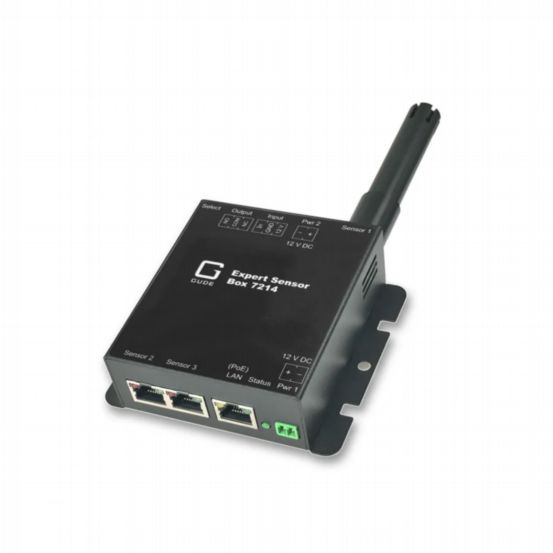

GUDE 7214-12 LAN Sensor Box for Environmental Monitoring with 4 Digital Inputs, PoE & Alarm Relay

GUDE Systems
GUDE 7214-12 LAN Sensor Box for Environmental Monitoring with 4 Digital Inputs, PoE & Alarm Relay

GS-721412

The GUDE 7214-12 Expert Sensor Box provides reliable monitoring of temperature, humidity, and air pressure in IT and AV installations, with four additional digital inputs for external devices such as smoke detectors, leakage sensors, or alarms. It features an integrated relay for direct alarm triggering. Early detection of environmental hazards reduces failures and downtime of critical infrastructure. The compact and robust sheet steel housing supports DIN rail or wall mounting, with two ports for additional plug-and-play sensors. Integration is flexible via REST API, HTTPS, SNMP, Telnet, and MQTT. Power-over-Ethernet (PoE) allows operation without an external power supply. Firmware updates, configuration, and IP management are performed via Ethernet during operation.

Features & Benefits

  • Integrated temperature, humidity or air pressure sensor
  • 4 digital inputs for external devices
  • Integrated alarm relay
  • 2 ports for additional plug-and-play sensors
  • Fast and easy mounting, also on DIN rail or wall
  • NTP function can be activated
  • Robust and compact sheet steel housing
  • Power supply via Power-over-Ethernet (PoE)
  • 2 connectors for combined plug-&-play sensors to prevent frequently occurring physical hazards such as overheating and increased humidity or air pressure
  • Generation of status messages and alarms (e-mail, syslog, SNMP traps, MQTT, SSH, Telnet)
  • Encrypted e-mails (SSL, STARTTLS)
  • Access protection by IP access control
  • Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH
  • Password protected access
  • Firmware update via Ethernet during operation (no restart required)
  • Simple and flexible configuration via web browser, Windows or Linux program
  • Dynamic assignment of an IP address via DHCP or manual assignment of static IP address
  • Rapid commissioning thanks to free and reliable drivers from our technology partners
  • Mounting on DIN rail or wall thanks to mounting clips
  • Robust sheet steel housing with versatile mounting options
  • Powdered sheet steel case, LxWxH: 100 x 34 x 90 mm (incl. brackets, excl. sensor pipe)
  • Plastic sensor pipe, Length: 94 mm, Diameter: 15 mm
  • Weight: approx. 300 g
  • Operating temperature: 0 – 50 °C
  • Operating temperature sensor pipe: -20 – 80 °C
  • Storage temperature: -20 – 70 °C
  • Relative humidity: 0-95% (non-condensing)
  • Temperature measuring range: -20 °C to +80 °C at ±2 °C (maximum) and ±1 °C (typical)
  • Humidity measuring range: 0-100% at ±3% (typical) and 10-80% at ±2% (typical)
  • Air pressure measuring range 300-1100 hPa: -20 °C to 0 °C at ±1.7 hPa (typical) and 0 °C to +65 °C at ±1 hPa (typical)
  • 1 connector for external power supply (industrial clamp, 2-fold)
  • 2 sensor connectors RJ45 for optional sensors for temperature, humidity, air pressure sensor
  • 1 Ethernet connector RJ45 (10/100 Mbit/s)
  • Power supply via Power-over-Ethernet (PoE)
