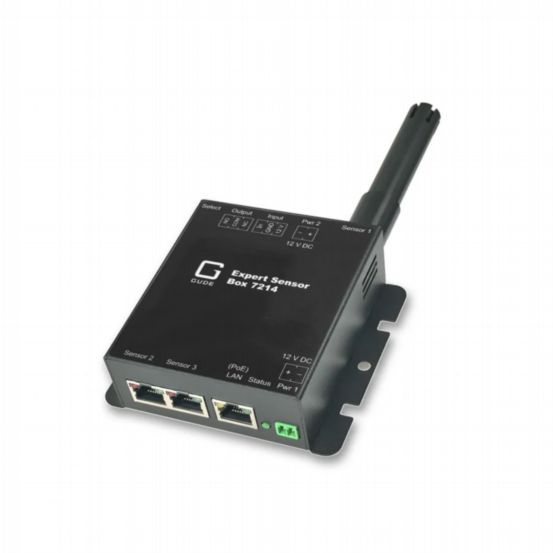

GUDE 7214-1 LAN Sensor Box for Environmental Monitoring with 4 Digital Inputs

GUDE Systems
GUDE 7214-1 LAN Sensor Box for Environmental Monitoring with 4 Digital Inputs

GS-72141

The GUDE 7214-1 Expert Sensor Box allows precise and proactive monitoring of temperature, humidity, and air pressure in IT and AV installations, with four additional digital inputs for external devices such as smoke detectors, leakage sensors, or alarms. It ensures early detection of environmental hazards to protect critical systems, reducing failures and downtime. The compact and robust sheet steel housing supports DIN rail or wall mounting. The device can integrate additional plug-and-play sensors and is compatible with REST API, HTTPS, SNMP, Telnet, and MQTT for flexible integration. Firmware updates, configuration, and IP management are performed via Ethernet during operation, with optional Power-over-Ethernet (PoE) for simplified wiring.

Features & Benefits

  • Integrated temperature, humidity or air pressure sensor
  • 4 digital inputs for external devices
  • 2 ports for additional plug-and-play sensors
  • Fast and easy mounting, also on DIN rail or wall
  • NTP function can be activated
  • Robust and compact sheet steel housing
  • Power supply also via Power-over-Ethernet (PoE) possible
  • 2 connectors for combined plug-&-play sensors to prevent frequently occurring physical hazards such as overheating and increased humidity or air pressure
  • Additional power supply via Power-over-Ethernet (PoE) possible
  • Generation of status messages and alarms (e-mail, syslog, SNMP traps, MQTT, SSH, Telnet)
  • Encrypted e-mails (SSL, STARTTLS)
  • Access protection by IP access control
  • Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH
  • Password protected access
  • Firmware update via Ethernet during operation (no restart required)
  • Simple and flexible configuration via web browser, Windows or Linux program
  • Dynamic assignment of an IP address via DHCP or manual assignment of static IP address
  • Rapid commissioning thanks to free and reliable drivers from our technology partners
  • Mounting on DIN rail or wall thanks to mounting clips
  • Robust sheet steel housing with versatile mounting options
  • Powdered sheet steel case, LxWxH: 100 x 34 x 90 mm (incl. brackets, excl. sensor pipe)
  • Plastic sensor pipe, Length: 94 mm, Diameter: 15 mm
  • Weight: approx. 300 g
  • Operating temperature: 0 – 50 °C
  • Operating temperature sensor pipe: -20 – 80 °C
  • Storage temperature: -20 – 70 °C
  • Relative humidity: 0-95% (non-condensing)
  • Temperature measuring range: -20 °C to +80 °C at ±2 °C (maximum) and ±1 °C (typical)
  • Humidity measuring range: 0-100% at ±3% (typical) and 10-80% at ±2% (typical)
  • Air pressure measuring range 300-1100 hPa: -20 °C to 0 °C at ±1.7 hPa (typical) and 0 °C to +65 °C at ±1 hPa (typical)
  • 1 connector for external power supply (industrial clamp, 2-fold)
  • 2 sensor connectors RJ45 for optional sensors for temperature, humidity, air pressure sensor
  • 1 Ethernet connector RJ45 (10/100 Mbit/s)
  • Power supply also via Power-over-Ethernet (7214-1)
