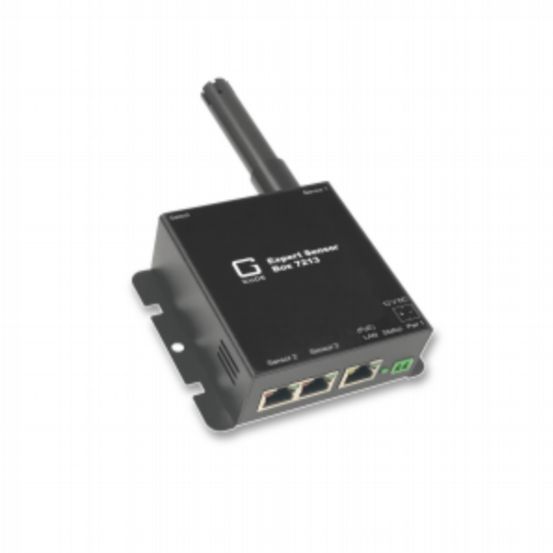

GUDE 7213-2 LAN Sensor for Environmental Monitoring

GUDE Systems
GUDE 7213-2 LAN Sensor for Environmental Monitoring

GS-72132

The GUDE 7213-2 Expert Sensor Box provides reliable monitoring of IT infrastructure environments, including temperature, humidity, and air pressure. It is designed for secure and proactive surveillance, allowing early detection of environmental hazards such as overheating or excessive humidity, which helps prevent failures in critical AV and IT installations. The compact and robust sheet steel housing enables easy installation on DIN rails or other surfaces. The sensor box supports additional plug-and-play sensors for expanded monitoring capabilities and can be integrated quickly into monitoring systems via REST API, HTTPS, SNMP, Telnet, and MQTT. Configuration, firmware updates, and IP management are done via Ethernet during operation, with options for flexible power supply including Power-over-Ethernet (PoE).

Features & Benefits

  • Integrated temperature, humidity or air pressure sensor
  • 2 ports for additional plug-and-play sensors
  • Fast and easy mounting, also on DIN rail
  • NTP function can be activated
  • Robust and compact sheet steel housing
  • Power supply also via Power-over-Ethernet (PoE) possible
  • 2 connectors for combined plug-&-play sensors to prevent frequently occurring physical hazards such as overheating and increased humidity or air pressure
  • Additional power supply via Power-over-Ethernet (PoE) possible
  • Generation of status messages and alarms (e-mail, syslog, SNMP traps MQTT, SSH, Telnet)
  • Encrypted e-mails (SSL, STARTTLS)
  • Access protection by IP access control
  • Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH
  • Password protected access
  • Firmware update via Ethernet during operation (no restart required)
  • Simple and flexible configuration via web browser, Windows or Linux program
  • Dynamic assignment of an IP address via DHCP or manual assignment of static IP address
  • Rapid commissioning thanks to free and reliable drivers from our technology partners
  • Mounting on DIN rail thanks to mounting clip
  • Robust sheet steel housing with versatile mounting options
  • Powdered sheet steel case, LxWxH: 100 x 34 x 90 mm (incl. brackets, excl. sensor pipe)
  • Plastic sensor pipe, Length: 94 mm, Diameter: 15 mm
  • Weight: approx. 300 g
  • Operating temperature: 0 – 50 °C
  • Operating temperature sensor pipe: -20 – 80 °C
  • Storage temperature: -20 – 70 °C
  • Relative humidity: 0-95% (non-condensing)
  • Temperature measuring range: -20 °C to +80 °C at ±2 °C (maximum) and ±1 °C (typical)
  • Humidity measuring range: 0-100% at ±3% (typical) and 10-80% at ±2% (typical)
  • Air pressure measuring range 300-1100 hPa: -20 °C to 0 °C at ±1.7 hPa (typical) and 0 °C to +65 °C at ±1 hPa (typical)
  • 1 connector for external power supply (industrial clamp, 2-fold)
  • 2 sensor connectors RJ45 for optional sensors for temperature, humidity, air pressure sensor
  • 1 Ethernet connector RJ45 (10/100 Mbit/s)
  • Power supply also via Power-over-Ethernet (7213-11, 7213-12, 7213-13)
